Solar Lighting Solution

ED flood light: TF-TGD-A

Product Features

Detailed product information and specifications

The shape design imitates the principle of fluid dynamics, which is simple and generous; Natural dust removal to maintain cleanliness of lighting fixtures.

Modular design, capable of selecting power according to customer requirements, to meet the needs of various occasions.

More conducive to LED heat dissipation and longer lamp life.

Convective design is beneficial for LED heat dissipation and improves lamp life.

The unique shape of the dust shield design can be customized according to customer requirements.

Technical Specifications

Detailed specifications and technical parameters

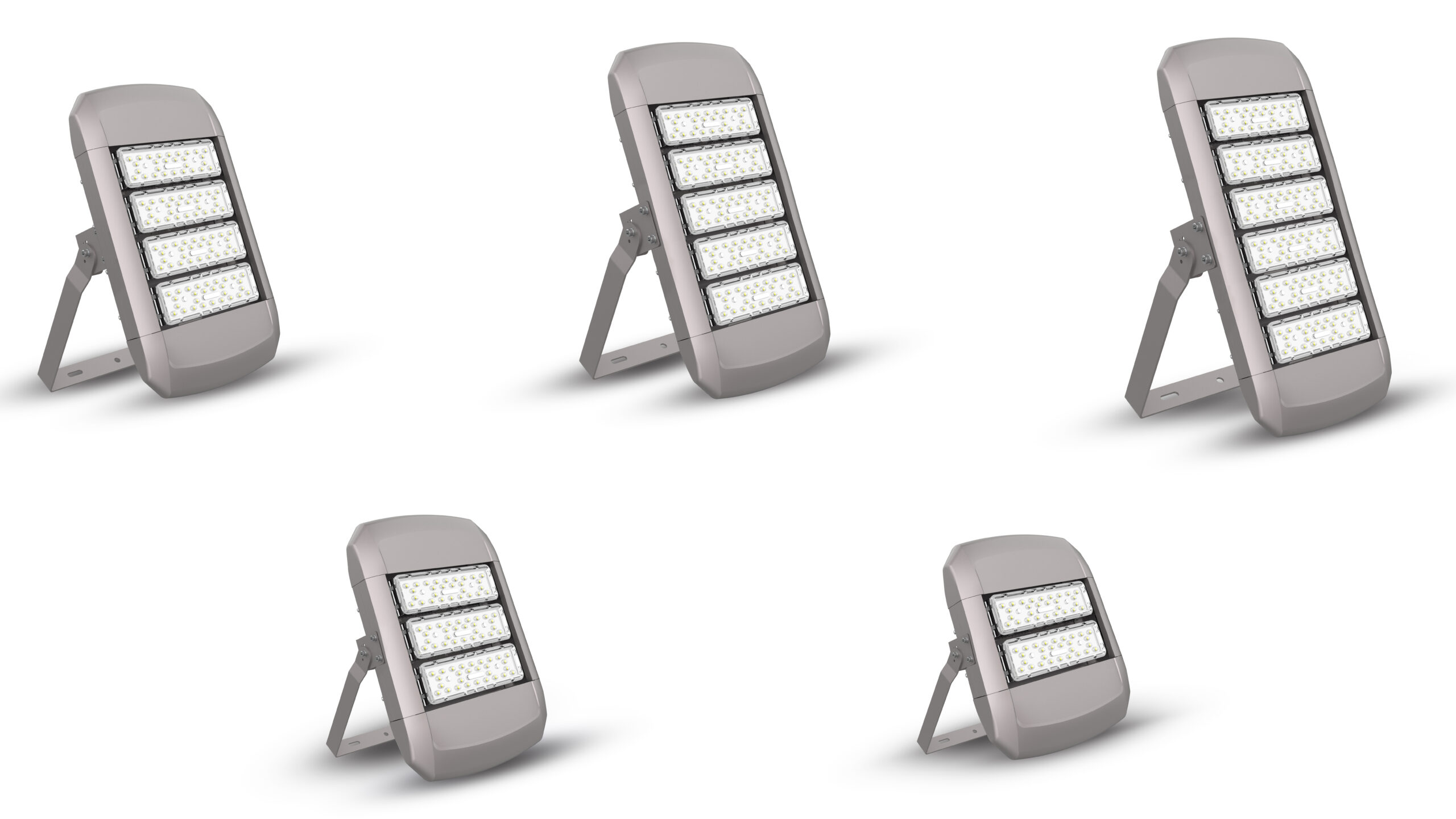

Product name: TF-TGD-A1 TF-TGD-A2 TF-TGD-A3 TF-TGD-A4 TF-TGD-A5
Rated power: 60W-120W 120W-180W 180W-240W 240W-300W 300W-360W
Light source: Philips, Kerui
Power supply voltage range: 100-305VAC
Frequency range: 50-60Hz
Power factor: > 0.95
Rendering Index: CRI > 70
LED Chip Lighting effect: 170lm/W-150lm/W 170lm/W-150lm/W 170lm/W-150lm/W 170lm/W-150lm/W 120lm/W-160lm/W
CT: 2700K-6500K
Work temperature: -30℃-50℃
Lens material: Imported optical PC
Light material: ADC12
LED Chip quantity: Class Ⅱ
LED lifespan: > 50000H
Size: 440×350×95mm 520×350×95mm 600×350×95mm 680×350×95mm 760×350×95mm

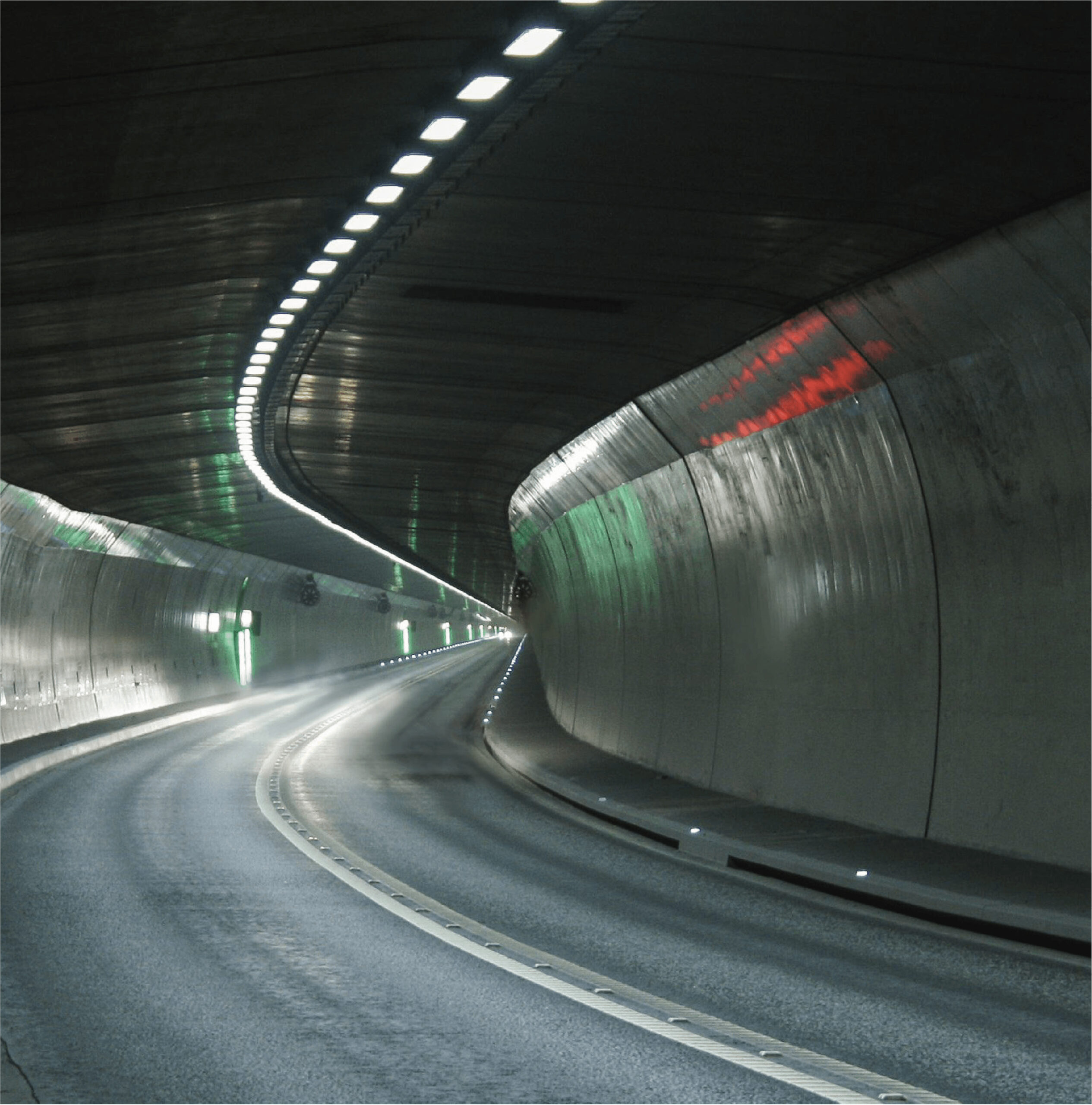

Installation Display

Real-world installation examples and applications
