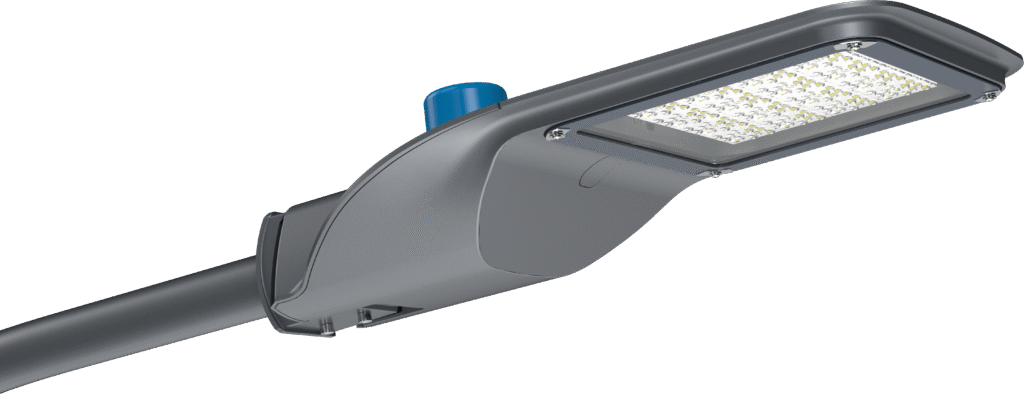

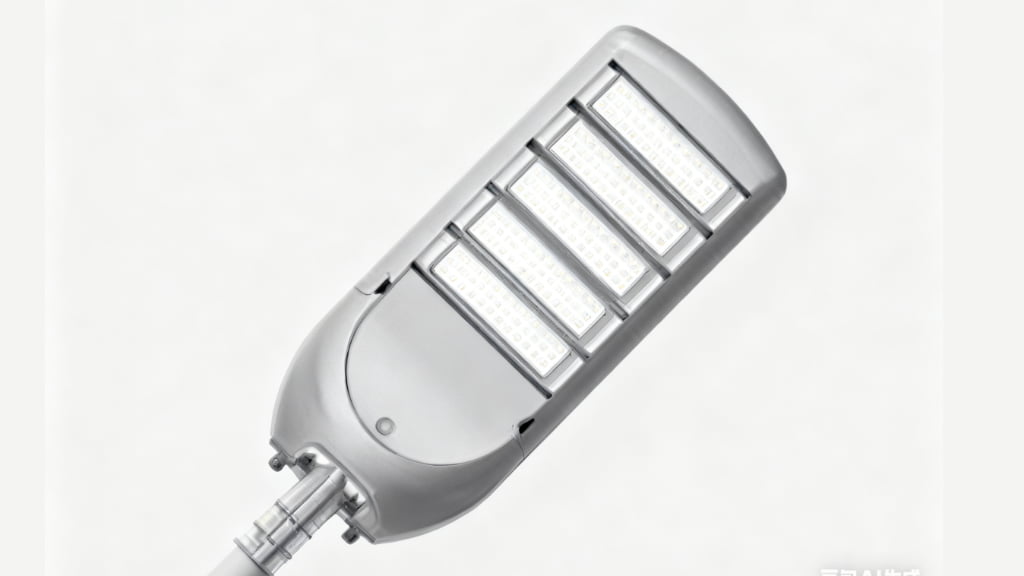

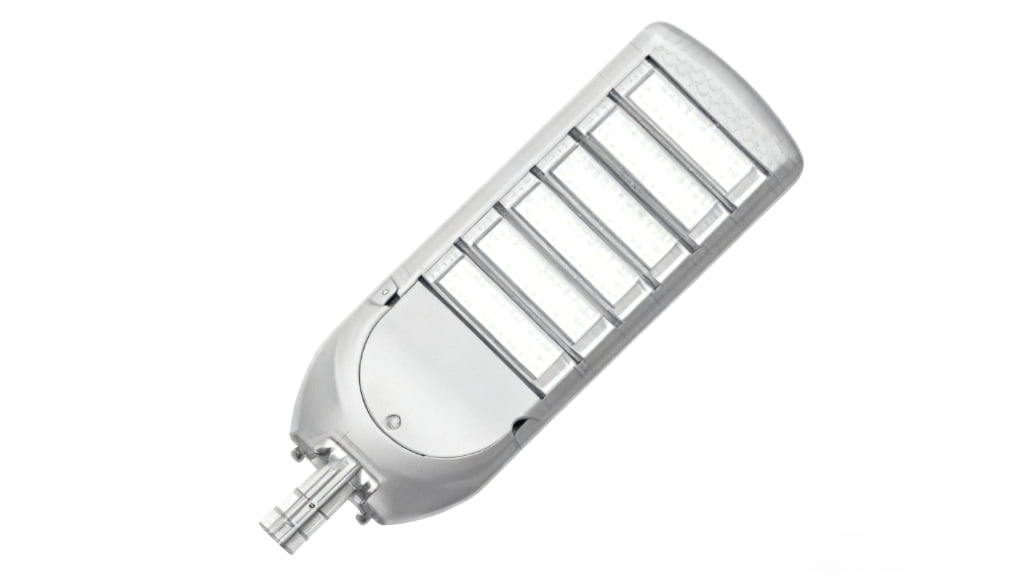

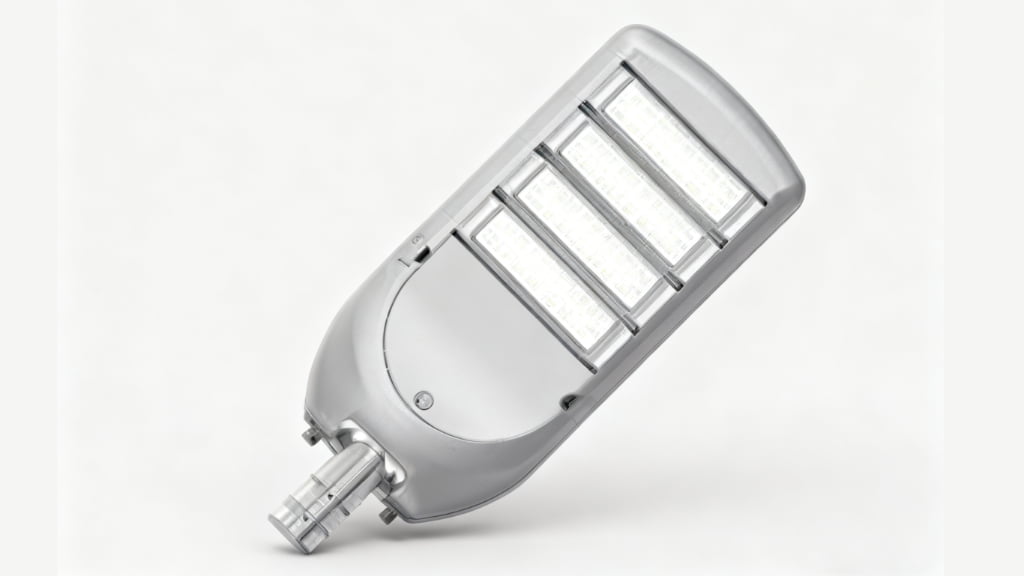

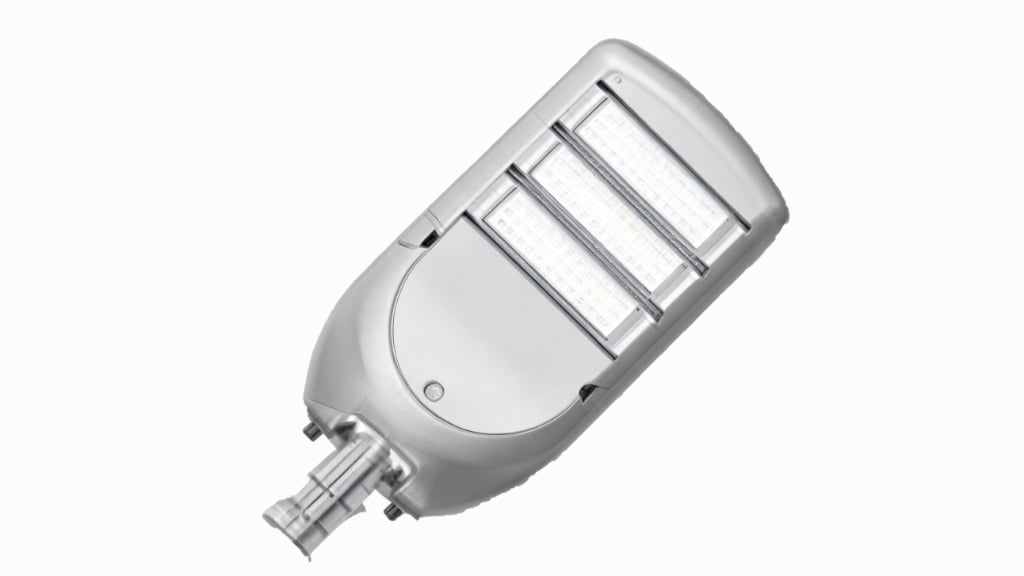

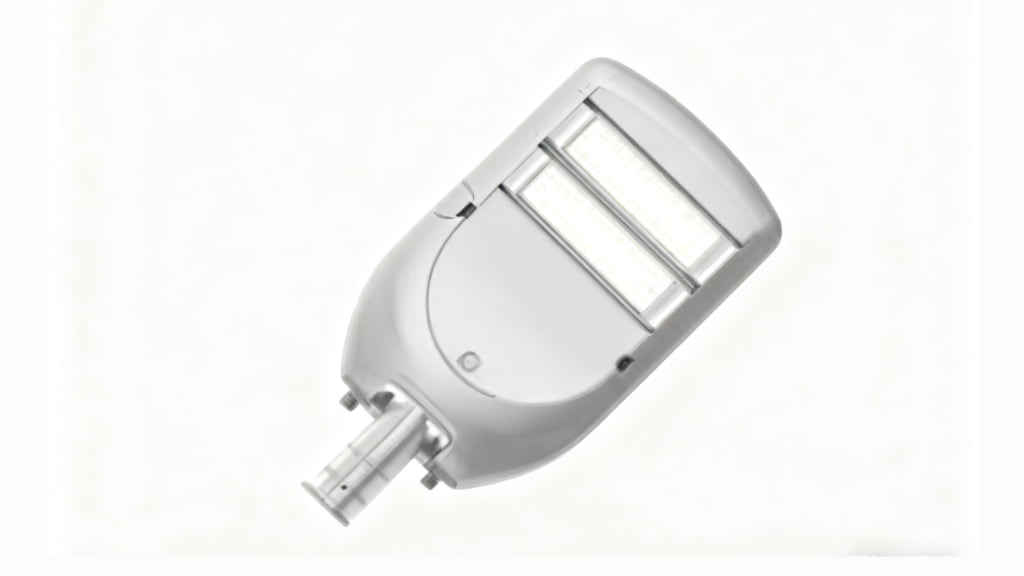

TF-SDD-01

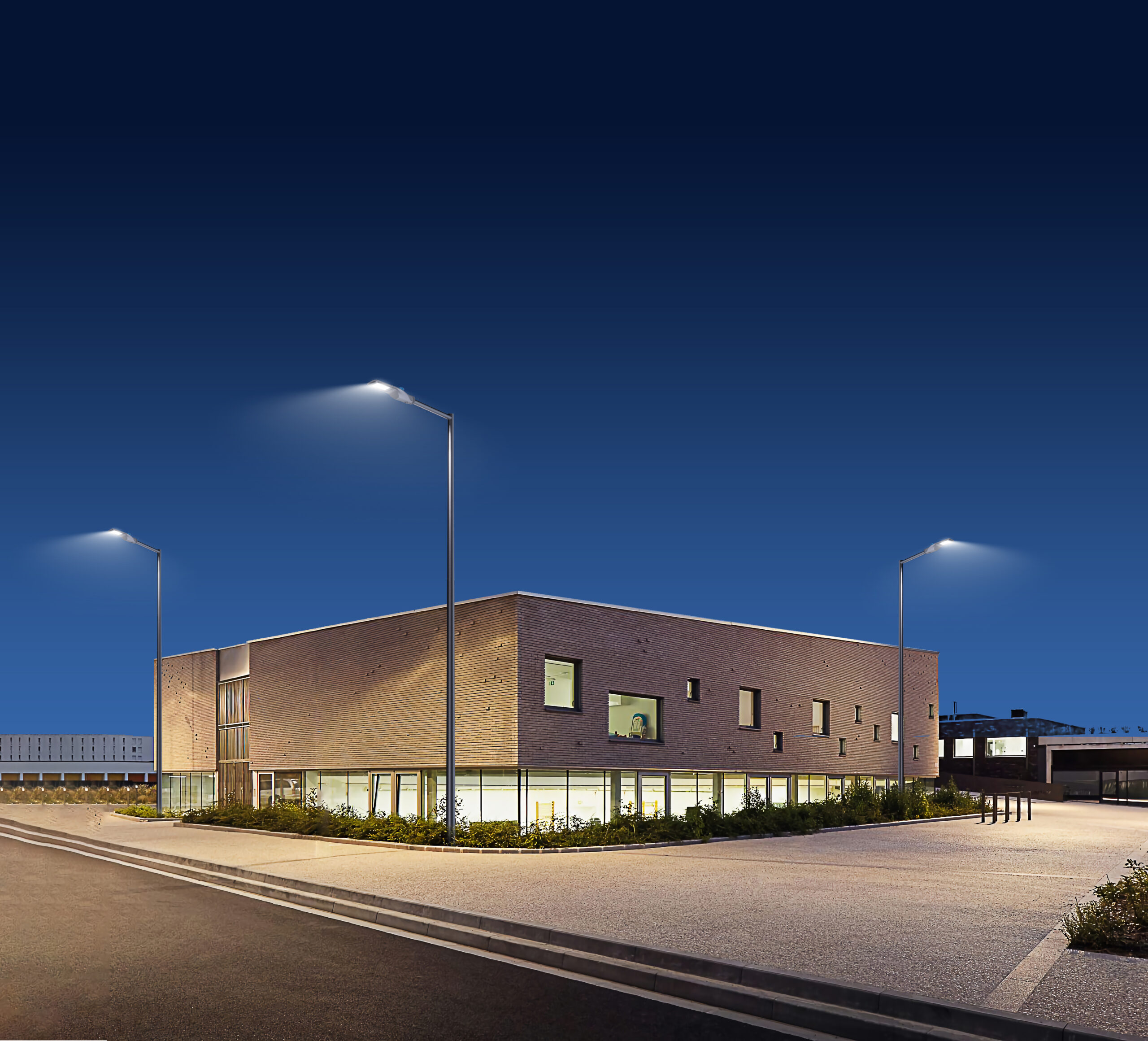

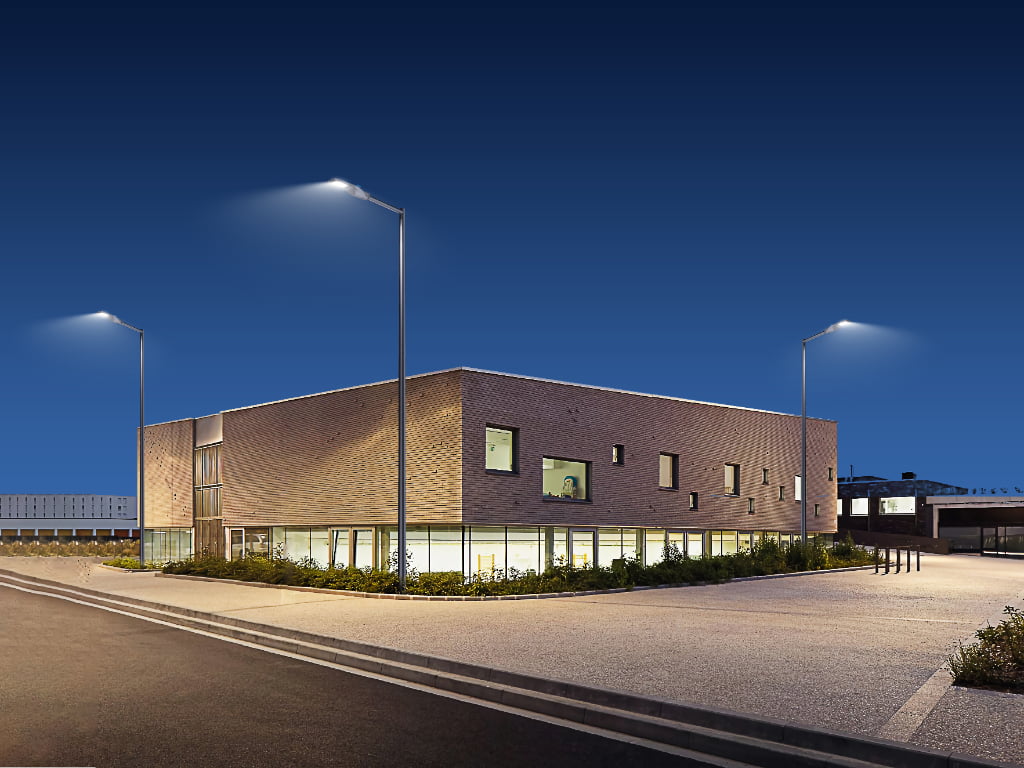

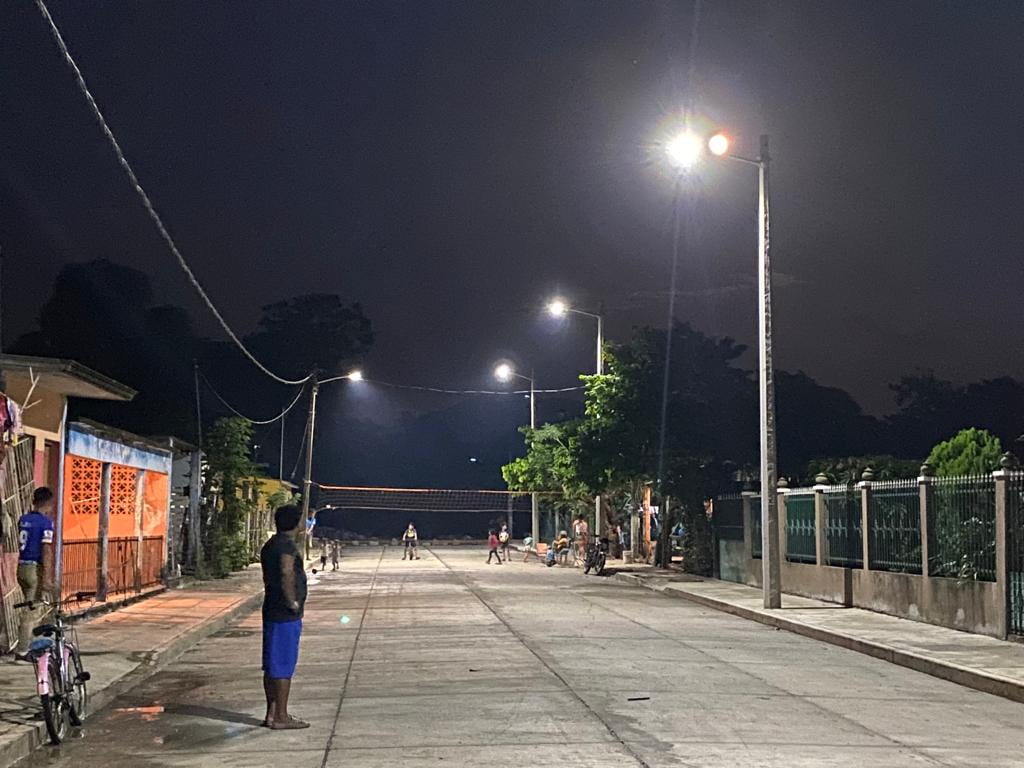

Used for any outdoor lighting places such as roads, squares, scenic spots, etc.

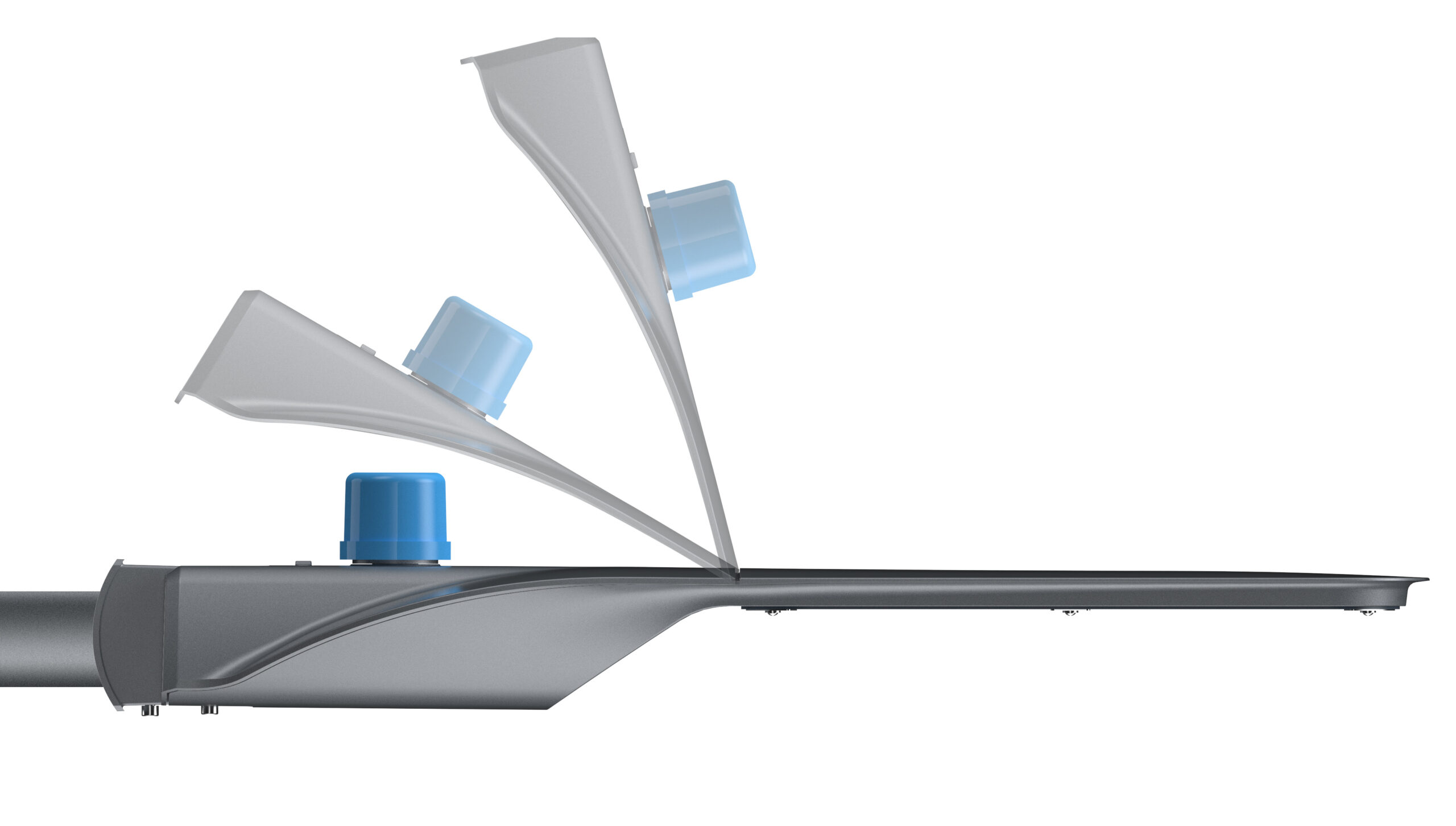

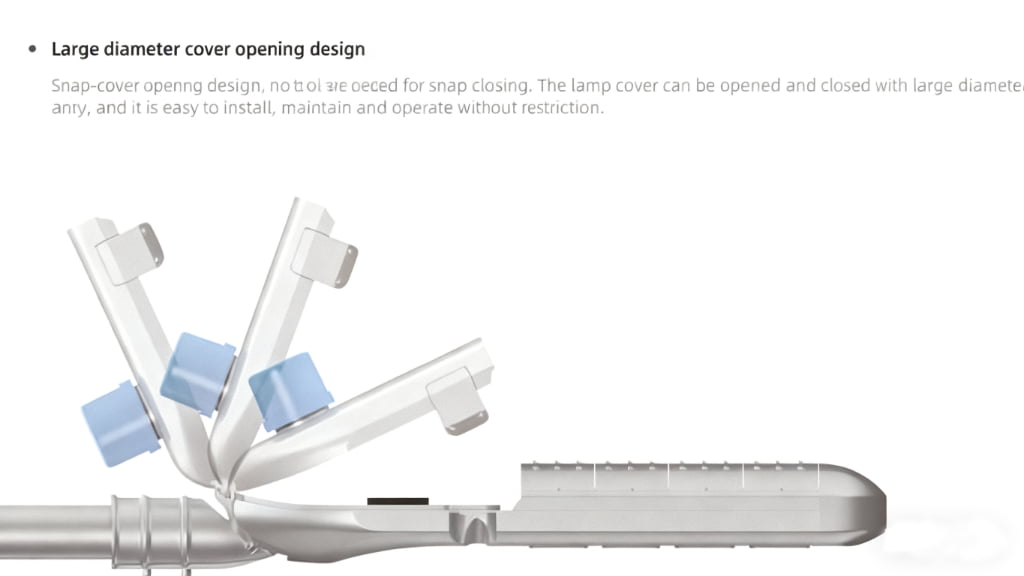

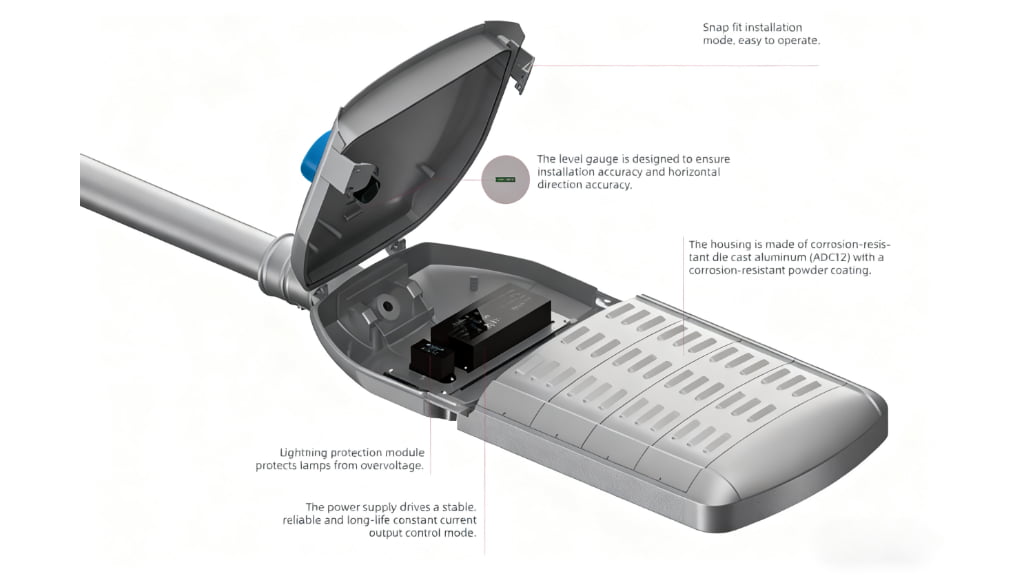

Large caliber opening and closing design for easy installation and maintenance
Using high-quality chips with minimal light decay and long-lasting durability

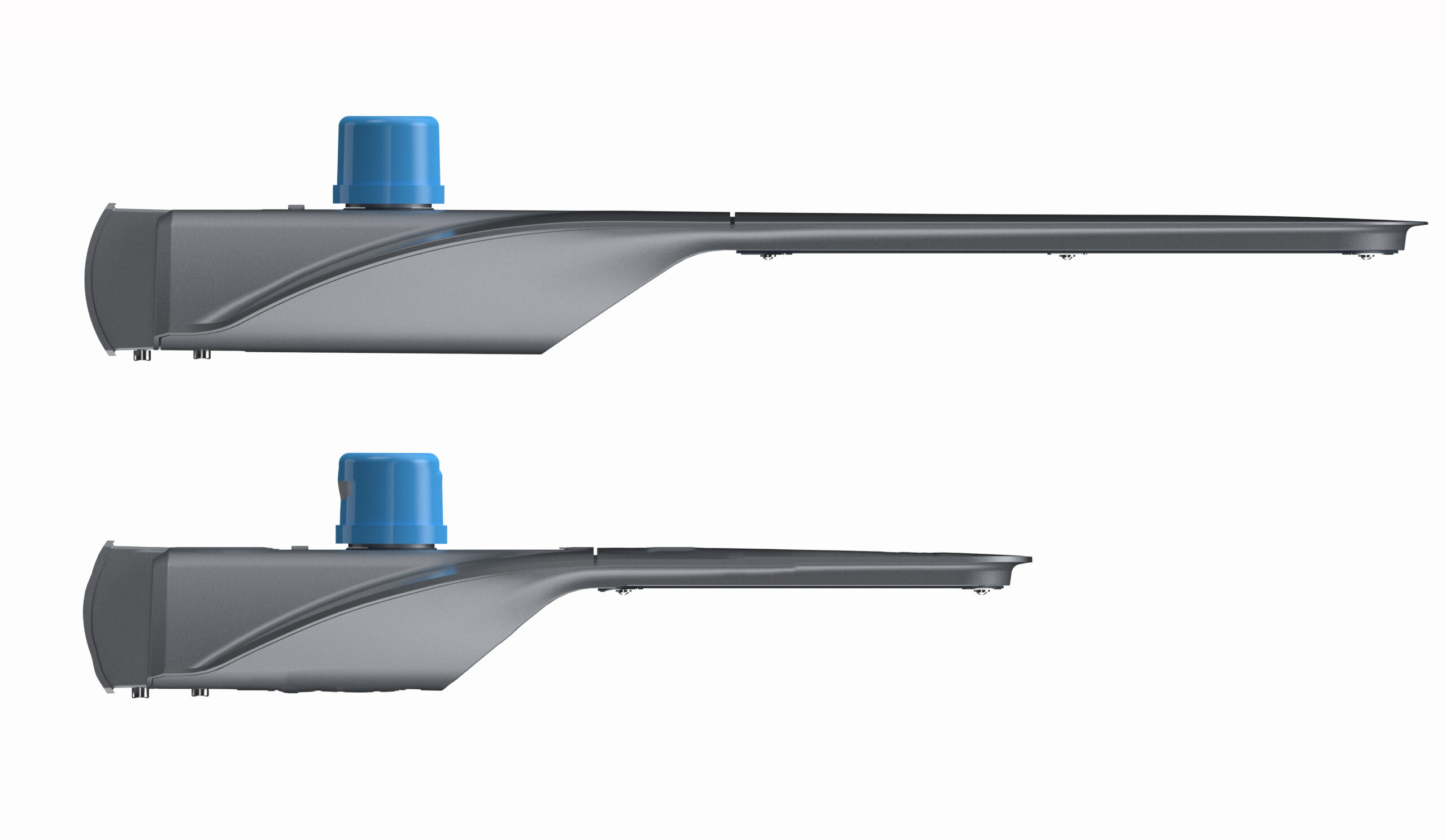

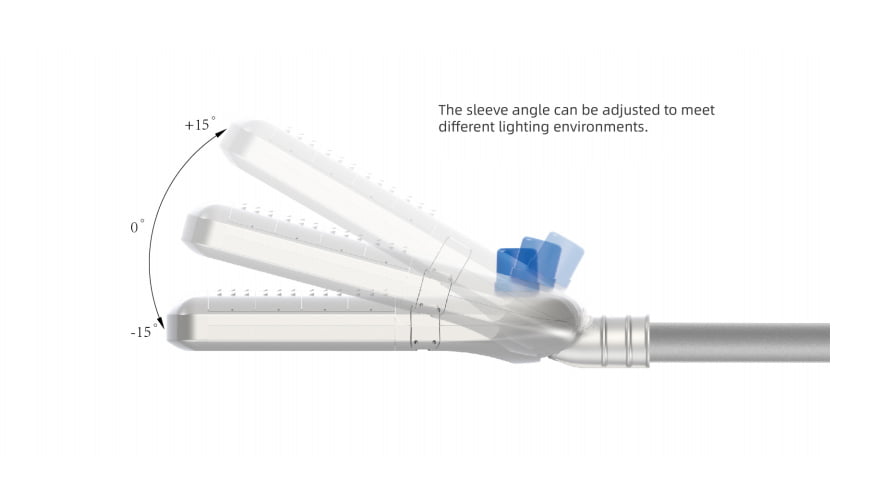

The sleeve adopts an angle adjustable design
Satisfy no lighting angles and excellent heat dissipation

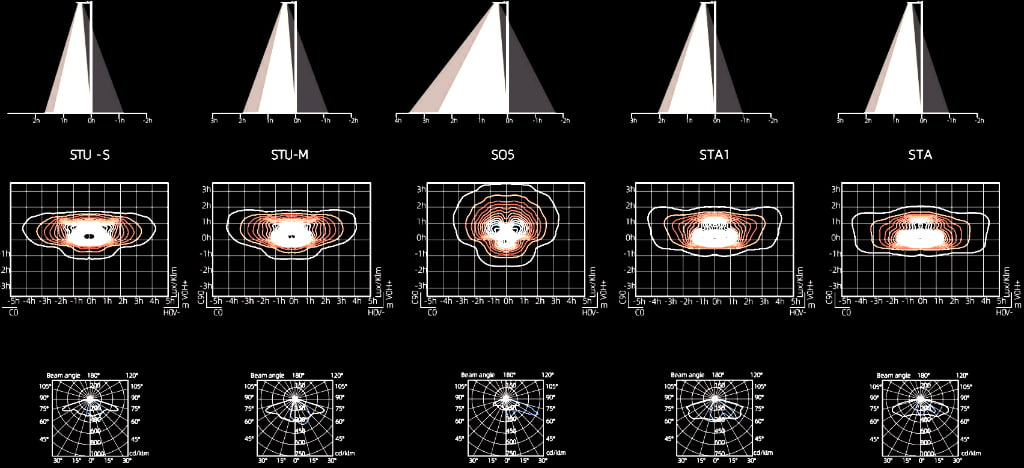

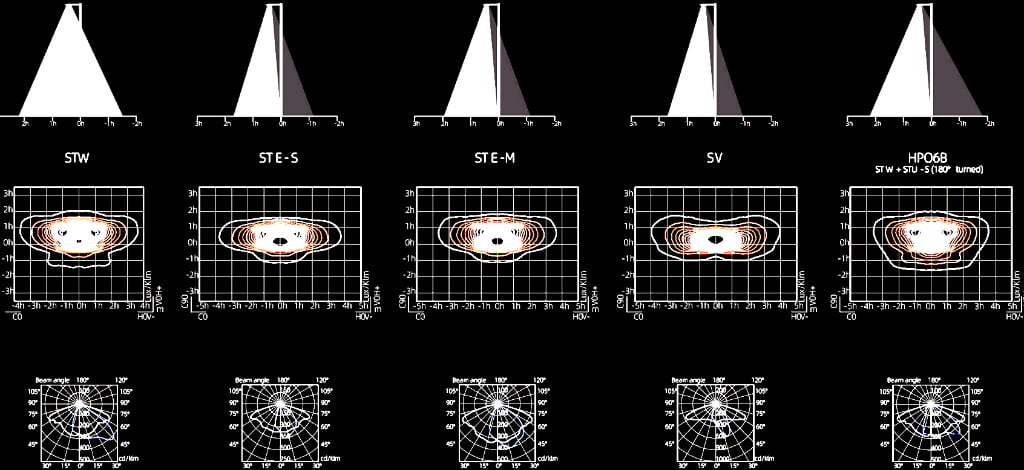

Different lens arrangements in different areas and installation areas
Parameters
| Product name: | TF-SDD-01-1 | TF-SDD-01-2 |
|---|---|---|
| Rated power: | 120W | 240W |
| System voltage: | AC 100-305V | AC 100-305V |
| Frequency range: | 50Hz/60Hz | 50Hz/60Hz |
| Power factor: | >0.90 | >0.90 |
| Lighting type: | BRIDGELUX, CREE | BRIDGELUX, CREE |
| LED Chip Lighting effect: | 180lm/W | 180lm/W |
| CT: | 3000K-6500K | 3000K-6500K |
| Ra: | Ra≥70 | Ra≥70 |
| Temperature range: | -35°C-70°C | -35°C-70°C |
| Humidity range: | 10%-90% | 10%-90% |
| LED lifespan: | >50000H | >50000H |
| Mount diameter: | φ60 | φ60 |
| Lamp housing material: | ADC12 | ADC12 |

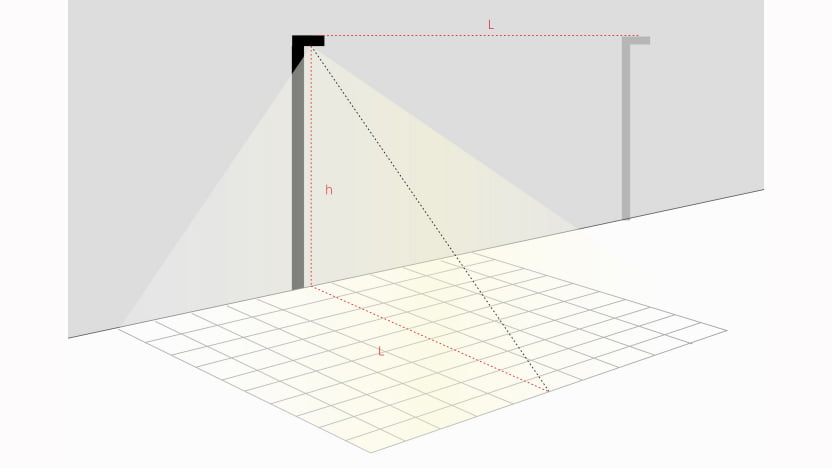

| Installation height: | 6m-10m | 8m-12m |

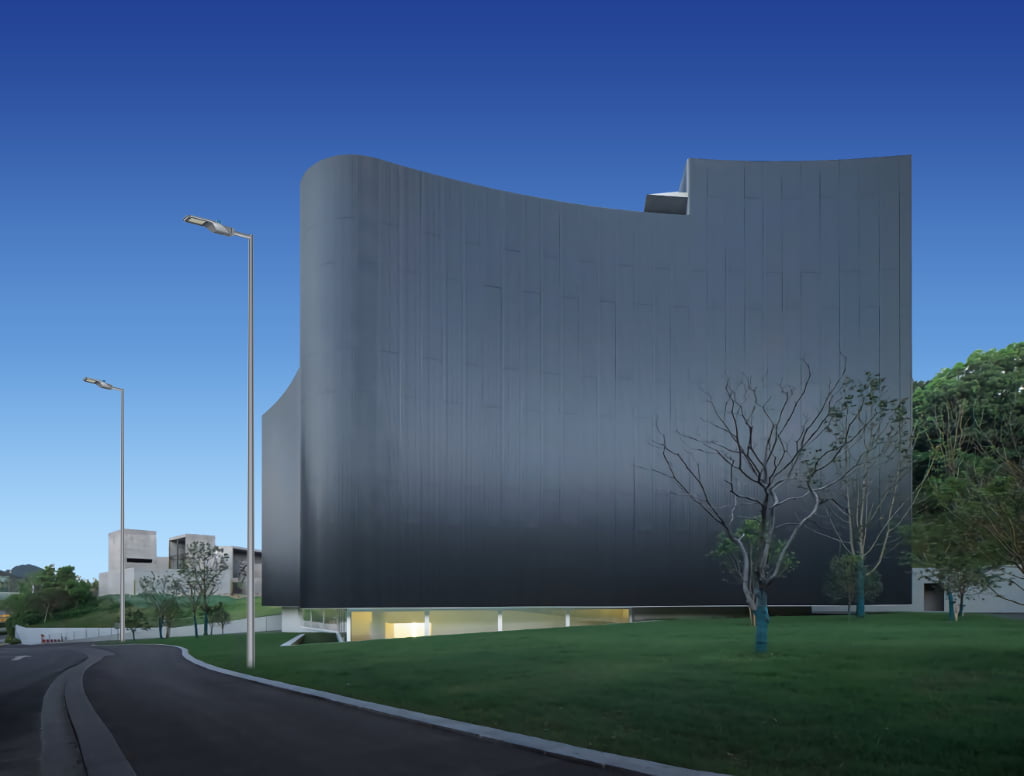

Mock-up
Parameters
| Product name: | TF-SDD-01-1 | TF-SDD-01-2 |
|---|---|---|
| Rated power: | 120W | 240W |
| System voltage: | AC 100-305V | AC 100-305V |
| Frequency range: | 50Hz/60Hz | 50Hz/60Hz |
| Power factor: | >0.90 | >0.90 |
| Lighting type: | BRIDGELUX, CREE | BRIDGELUX, CREE |
| LED Chip Lighting effect: | 180lm/W | 180lm/W |
| CT: | 3000K-6500K | 3000K-6500K |
| Ra: | Ra≥70 | Ra≥70 |
| Temperature range: | -35°C-70°C | -35°C-70°C |
| Humidity range: | 10%-90% | 10%-90% |
| LED lifespan: | >50000H | >50000H |
| Mount diameter: | φ60 | φ60 |
| Lamp housing material: | ADC12 | ADC12 |
| Installation height: | 6m-10m | 8m-12m |
