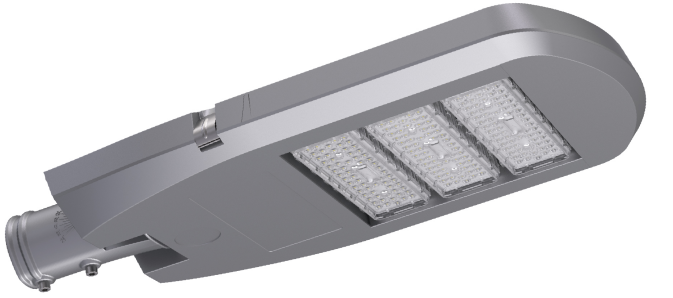

TF-SDD-04
Module pluggable technology, easy maintenance.
Honeycomb heat dissipation and full-structure heat dissipation technology.
Eutectic welding without gold wire to increase the quality.
IP68, ultra-high waterproof grade.
Single damage does not affect the current of other particles.
Intelligent constant current drive technology for long lifespan.
Parameters
| Product name: | TF-SDD-04-1 | TF-SDD-04-2 | TF-SDD-04-3 |
|---|---|---|---|
| Rated power: | 90W/120W/150W | 120W/160W/200W | 200W/240W/300W |
| System voltage: | AC 100-305V | AC 100-305V | AC 100-305V |
| Frequency range: | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz |
| Power factor: | >0.90 | >0.90 | >0.90 |
| Lighting type: | LUMILEDS, CREE | LUMILEDS, CREE | LUMILEDS, CREE |
| LED Chip Lighting effect: | 180lm/W | 180lm/W | 180lm/W |
| CT: | 3000K-6500K | 3000K-6500K | 3000K-6500K |
| Ra: | Raz70 | Raz70 | Raz70 |
| Temperature range: | -35°C-70°C | -35°C-70°C | -35°C-70°C |
| Humidity range: | 10%-90% | 10%-90% | 10%-90% |
| LED lifespan: | >50000H | >50000H | >50000H |
| Mount diameter: | φ60 | φ60 | φ60 |
| Lamp housing material: | ADC12 | ADC12 | ADC12 |
| Installation height: | 4m-5m | 6m-8m | 8m-12m |

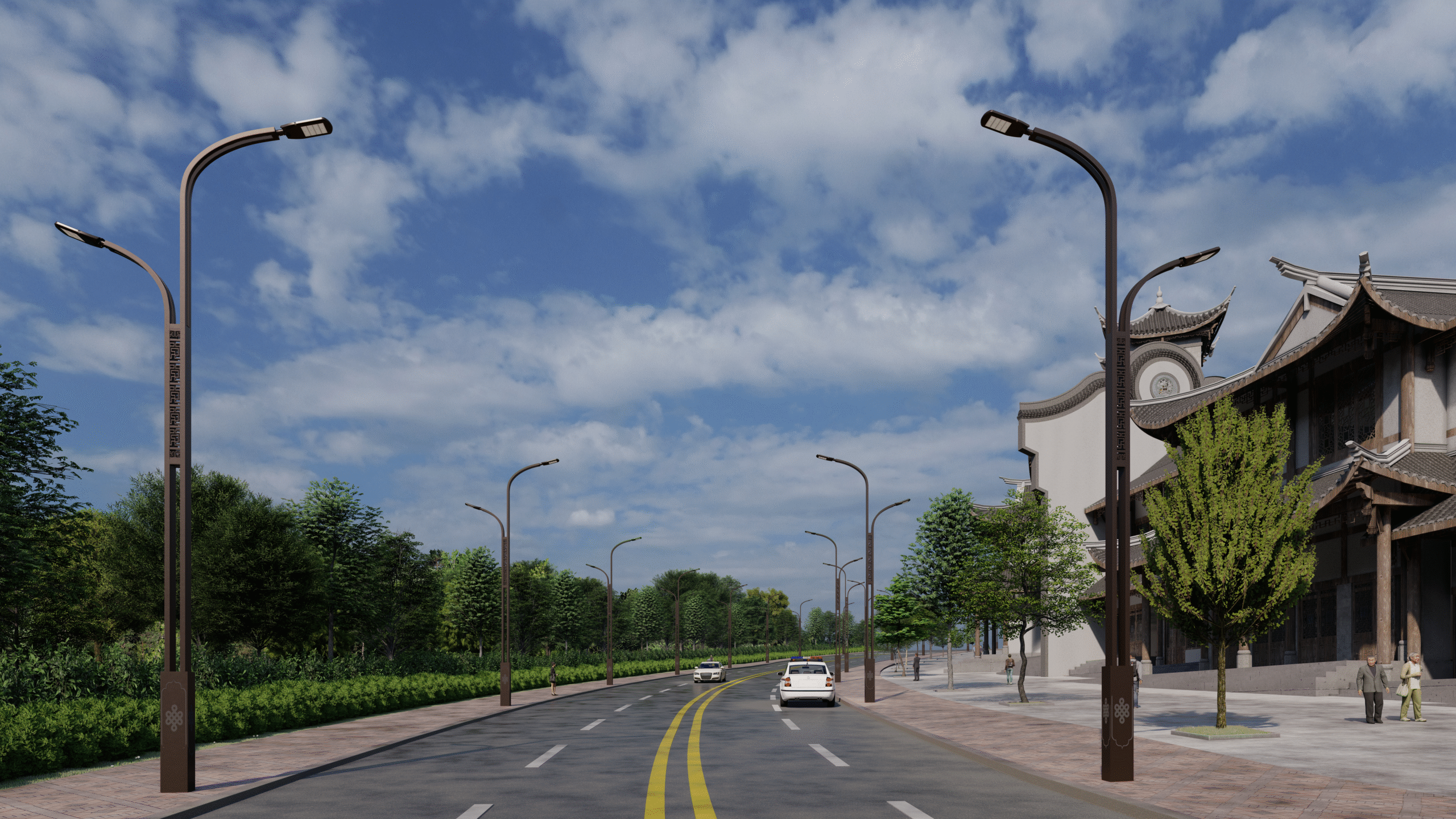

Mock-up
