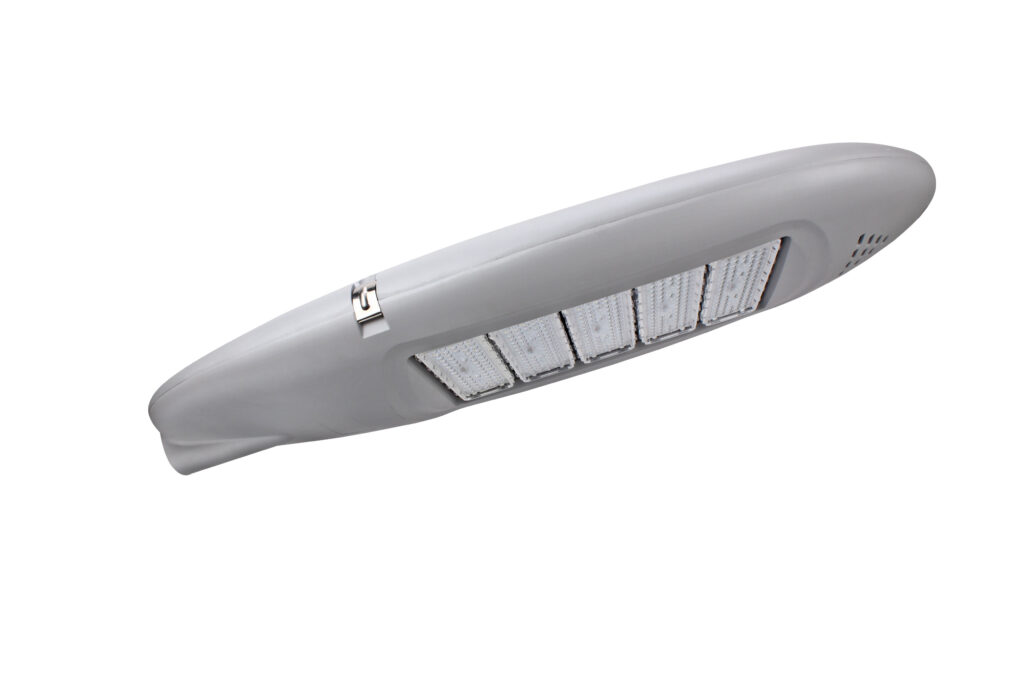

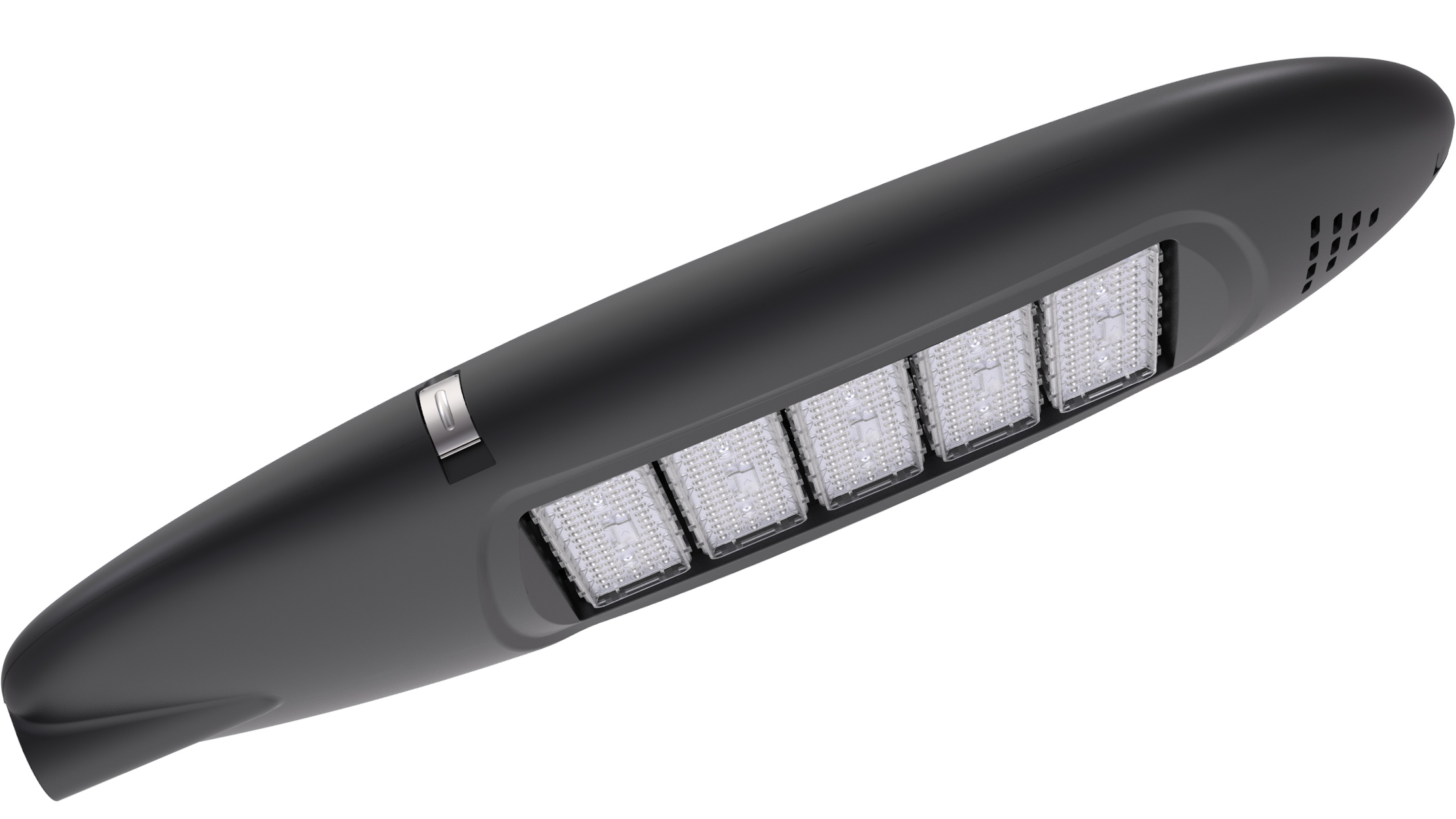

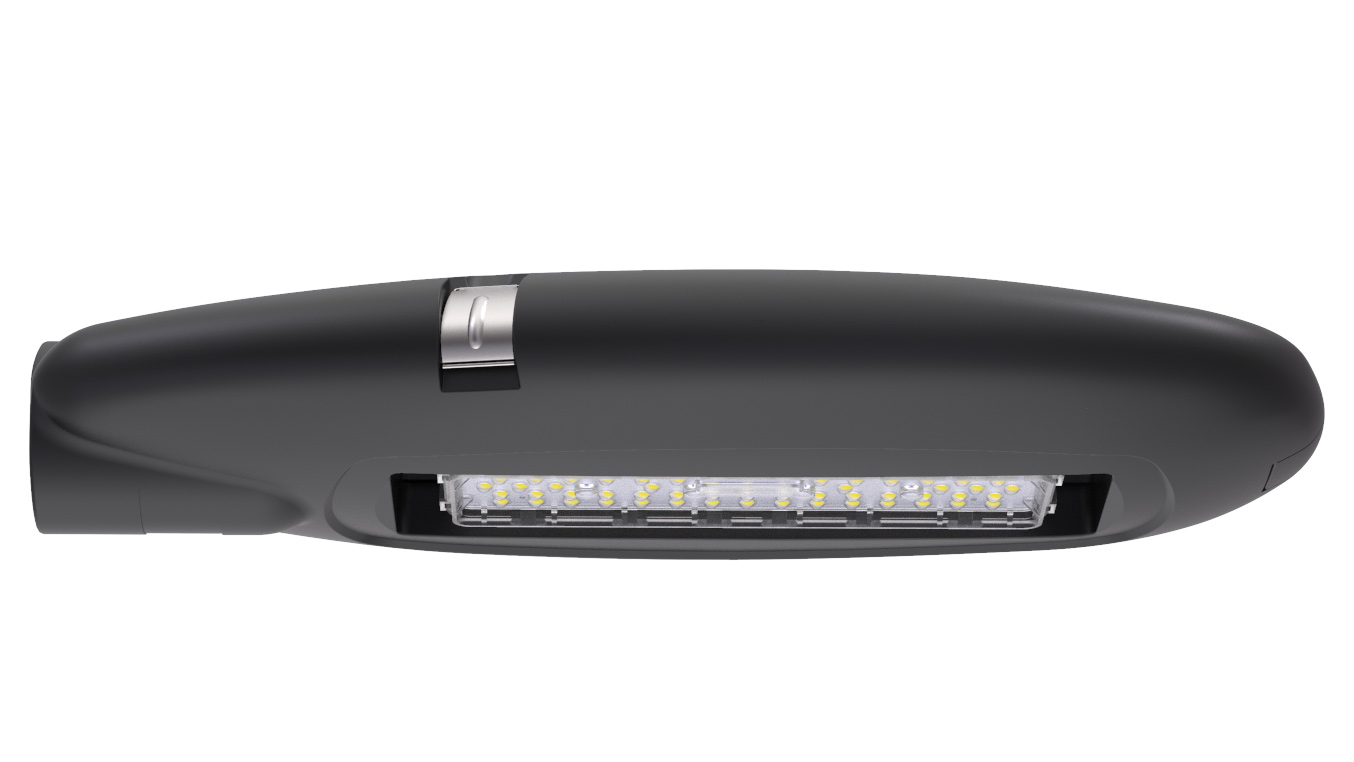

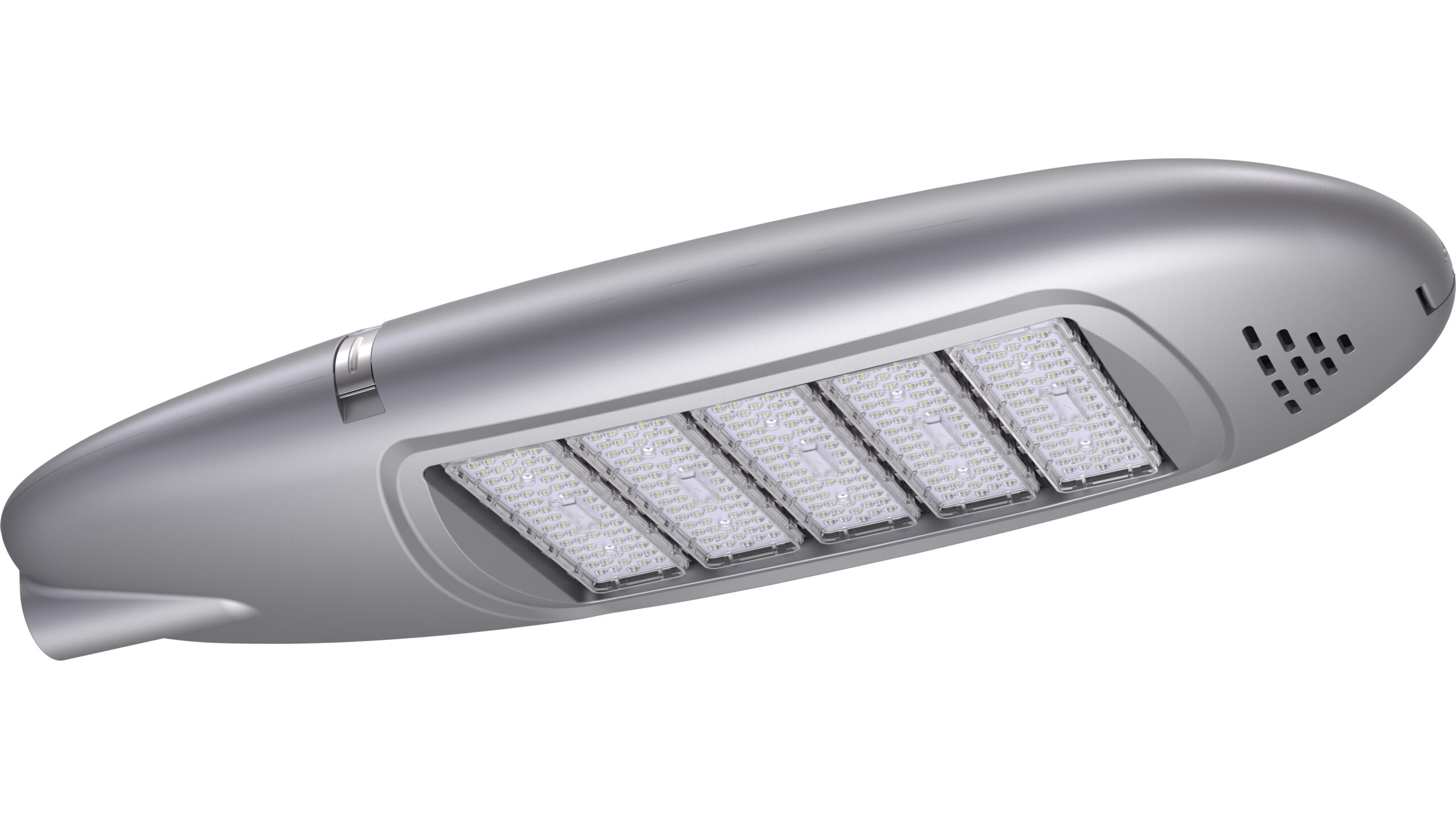

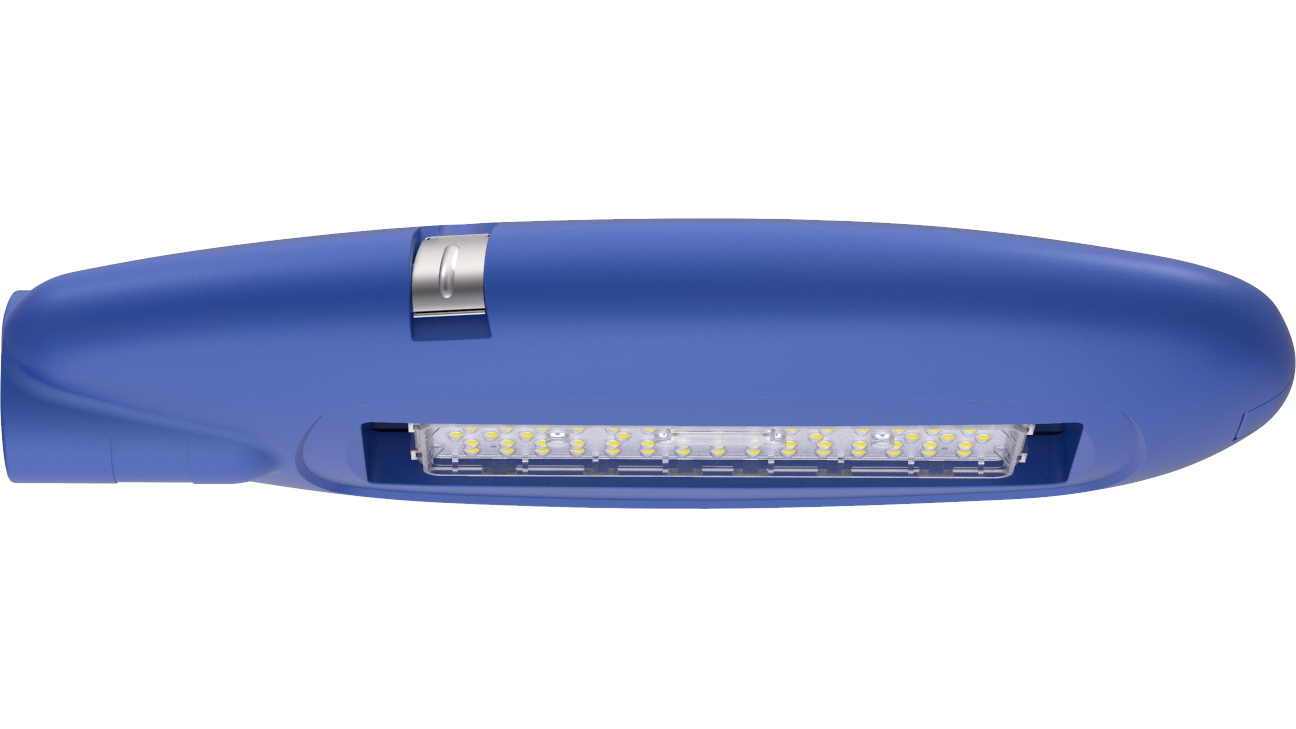

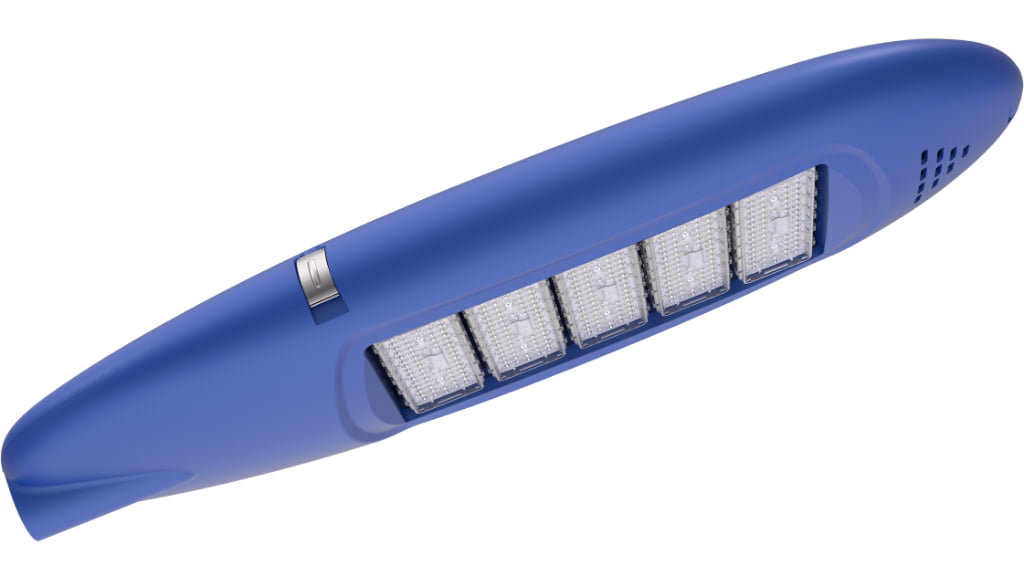

TF-SDD-05
Module pluggable technology, easy maintenance.

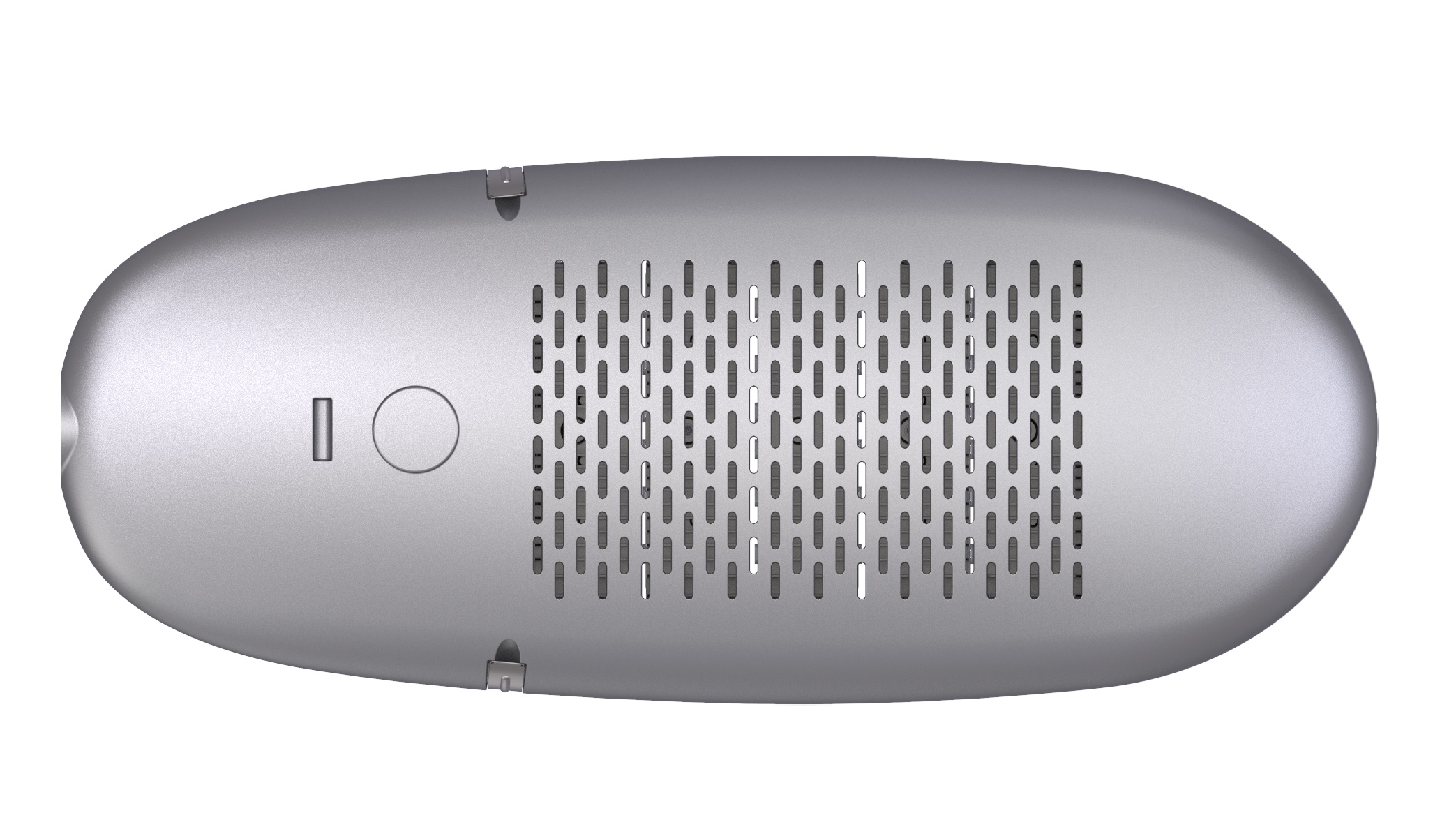

Honeycomb heat dissipation and full-structure heat dissipation technology.
Eutectic welding without gold wire to increase the quality.
IP68, ultra-high waterproof grade.
Single damage does not affect the current of other particles.
Intelligent constant current drive technology for long lifespan.
Parameters
| Product name: | TF-SDD-05-1 | TF-SDD-05-2 |
|---|---|---|
| Rated power: | 60W/90W/120W/150W | 150W/200W/250W/300W |
| System voltage: | AC 100-305V | AC 100-305V |
| Frequency range: | 50Hz/60Hz | 50Hz/60Hz |
| Power factor: | >0.90 | >0.90 |
| Lighting type: | LUMILEDS, CREE | LUMILEDS, CREE |
| LED Chip Lighting effect: | 180nm/W | 180nm/W |
| CT: | 3000K-6500K | 3000K-6500K |
| Ra: | Ras>70 | Ras>70 |
| Temperature range: | -35°C-70°C | -35°C-70°C |
| Humidity range: | 10%-90% | 10%-90% |
| LED lifespan: | >50000H | >50000H |
| Mount diameter: | φ60 | φ60 |
| Lamp housing material: | ADC12 | ADC12 |
| Installation height: | 4m-8m | 6m-12m |

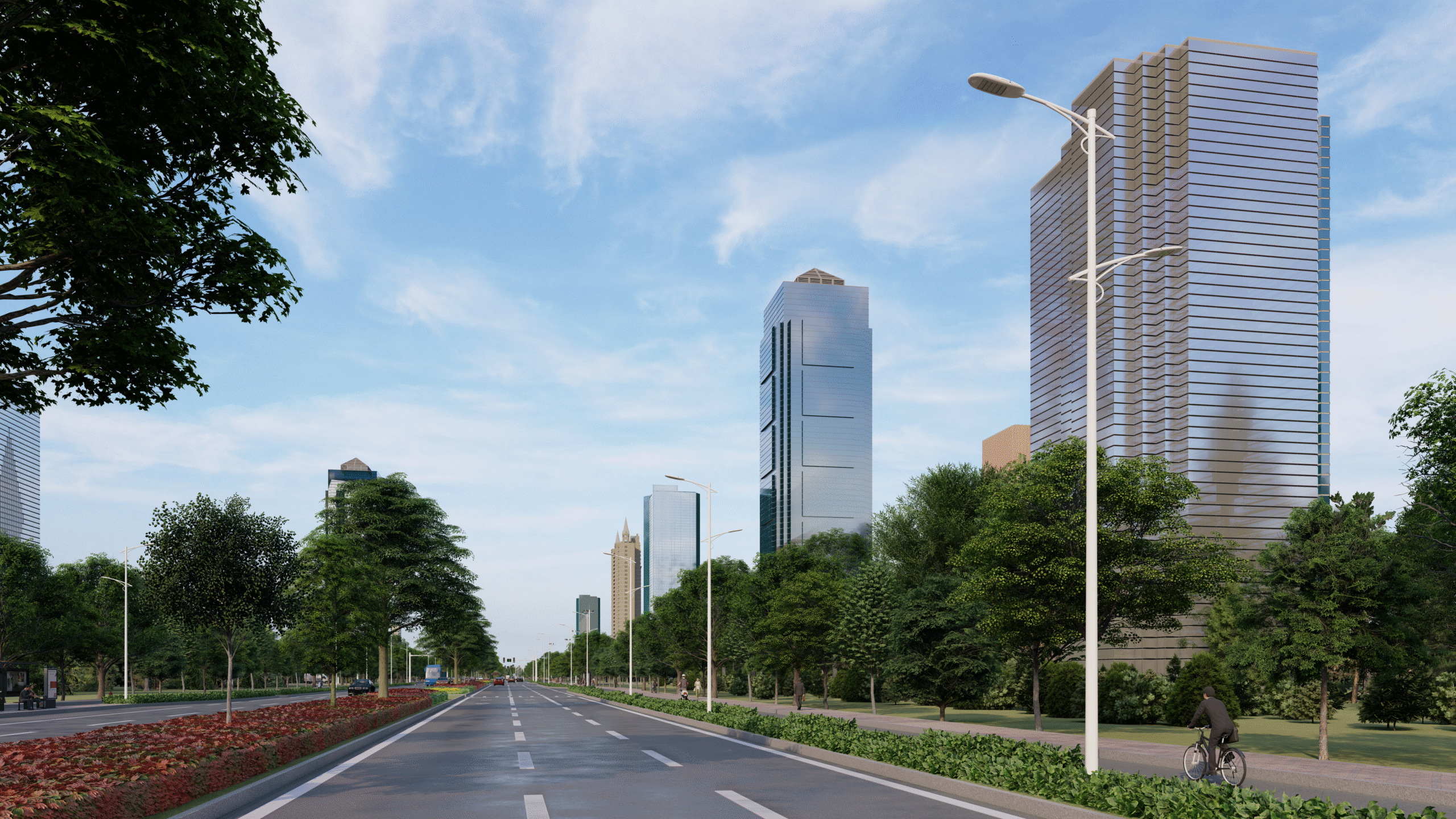

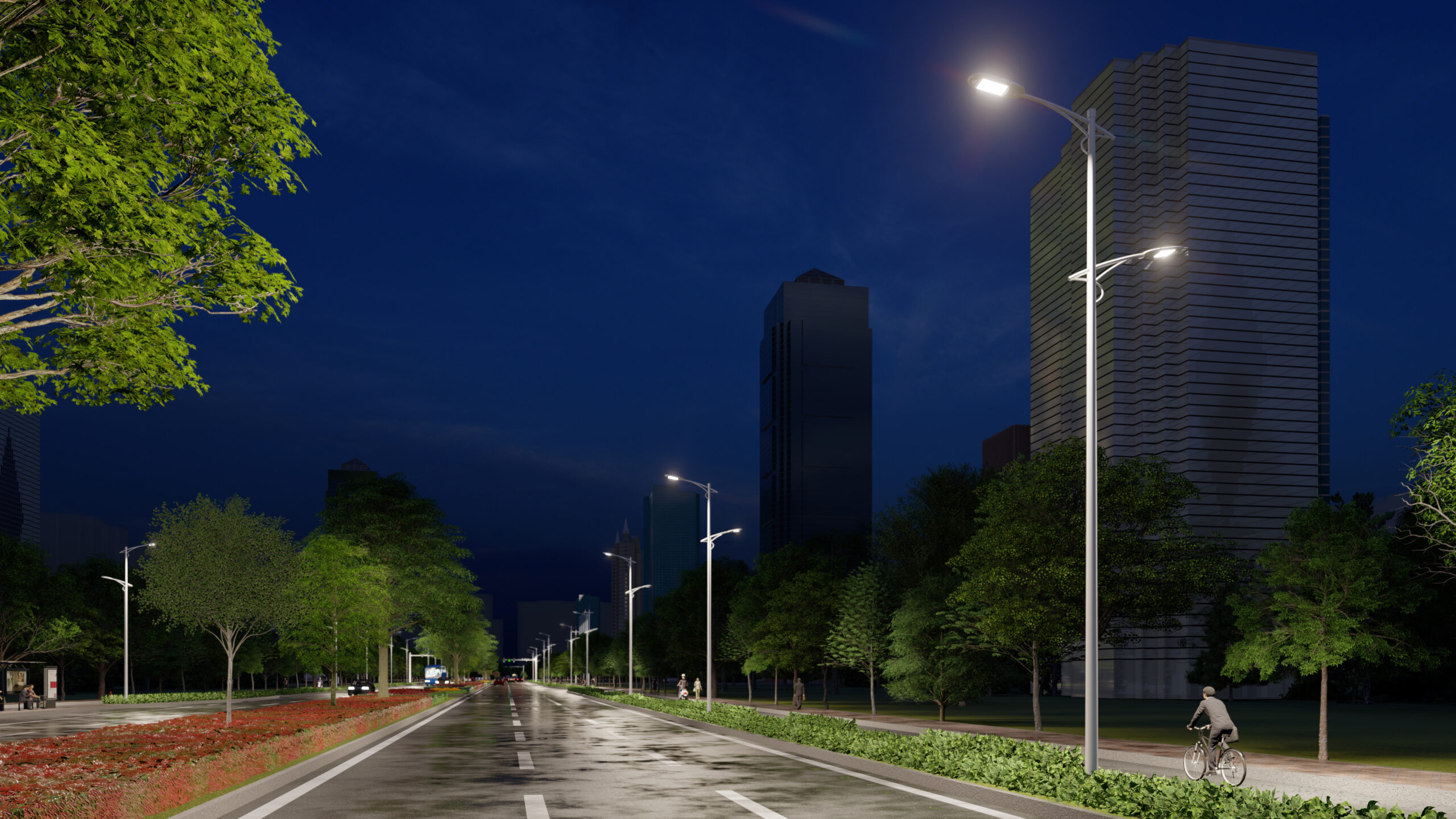

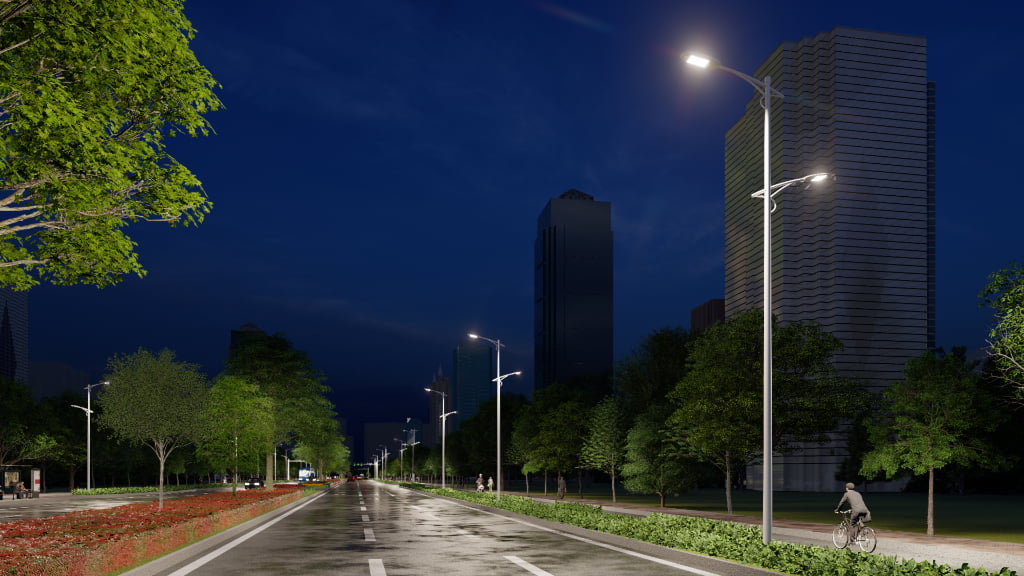

Mock-up
Parameters
| Product name: | TF-SDD-05-1 | TF-SDD-05-2 |
|---|---|---|
| Rated power: | 60W/90W/120W/150W | 150W/200W/250W/300W |
| System voltage: | AC 100-305V | AC 100-305V |
| Frequency range: | 50Hz/60Hz | 50Hz/60Hz |
| Power factor: | >0.90 | >0.90 |
| Lighting type: | LUMILEDS, CREE | LUMILEDS, CREE |
| LED Chip Lighting effect: | 180nm/W | 180nm/W |
| CT: | 3000K-6500K | 3000K-6500K |
| Ra: | Ras>70 | Ras>70 |
| Temperature range: | -35°C-70°C | -35°C-70°C |
| Humidity range: | 10%-90% | 10%-90% |
| LED lifespan: | >50000H | >50000H |
| Mount diameter: | φ60 | φ60 |
| Lamp housing material: | ADC12 | ADC12 |
| Installation height: | 4m-8m | 6m-12m |
