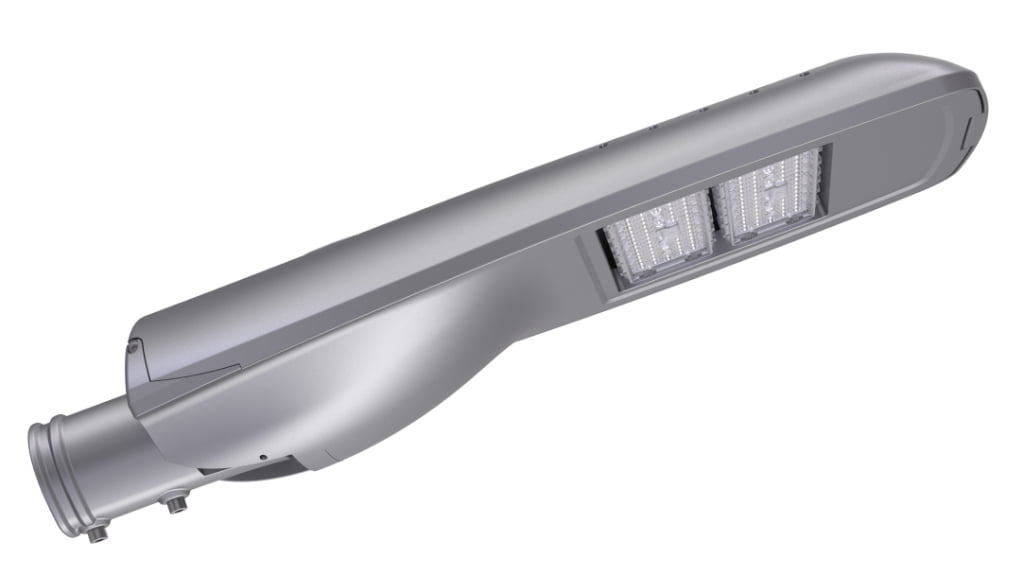

TF-SDD-06
Product Description
Module pluggable technology, easy maintenance.
Honeycomb heat dissipation and full-structure heat dissipation technology.
Eutectic welding without gold wire to increase the quality.
IP68, ultra-high waterproof grade.
Single damage does not affect the current of other particles.
Intelligent constant current drive technology for long lifespan.
Product Parameters
| Product name: | TF-SDD-06-1 | TF-SDD-06-2 |
|---|---|---|
| Rated power: | 60W/90W/120W/150W | 120W/150W/200W/240W |
| System voltage: | AC 100-305V | AC 100-305V |
| Frequency range: | 50Hz/60Hz | 50Hz/60Hz |
| Power factor: | ＞0.90 | ＞0.90 |
| Lighting type: | LUMILEDS、CREE | LUMILEDS、CREE |
| LED Chip Lighting effect: | 180lm/W | 180lm/W |
| CT: | 3000K-6500K | 3000K-6500K |
| Cr: | Ra≥70 | Ra≥70 |
| Temperature range: | -35℃-70℃ | -35℃-70℃ |
| Humidity range: | 10%-90% | 10%-90% |
| LED lifespan: | ＞50000H | ＞50000H |
| Mount diameter: | φ60 | φ60 |
| Lamp housing material: | ADC12 | ADC12 |
| Installation height: | 4m-8m | 6m-12m |
Technical Specifications
Product Parameters
Detailed technical parameters and specifications
| Product name: | TF-SDD-06-1 | TF-SDD-06-2 |
|---|---|---|
| Rated power: | 60W/90W/120W/150W | 120W/150W/200W/240W |
| System voltage: | AC 100-305V | AC 100-305V |
| Frequency range: | 50Hz/60Hz | 50Hz/60Hz |
| Power factor: | > 0.90 | > 0.90 |
| Lighting type: | LUMILEDS、CREE | LUMILEDS、CREE |
| LED Chip Lighting effect: | 180lm/W | 180lm/W |
| CT: | 3000K-6500K | 3000K-6500K |
| Ra: | Ra≥70 | Ra≥70 |
| Temperature range: | -35℃-70℃ | -35℃-70℃ |
| Humidity range: | 10%-90% | 10%-90% |
| LED lifespan: | > 50000H | > 50000H |
| Mount diameter: | φ60 | φ60 |
| Lamp housing material: | ADC12 | ADC12 |
| Installation height: | 4m-8m | 6m-12m |
