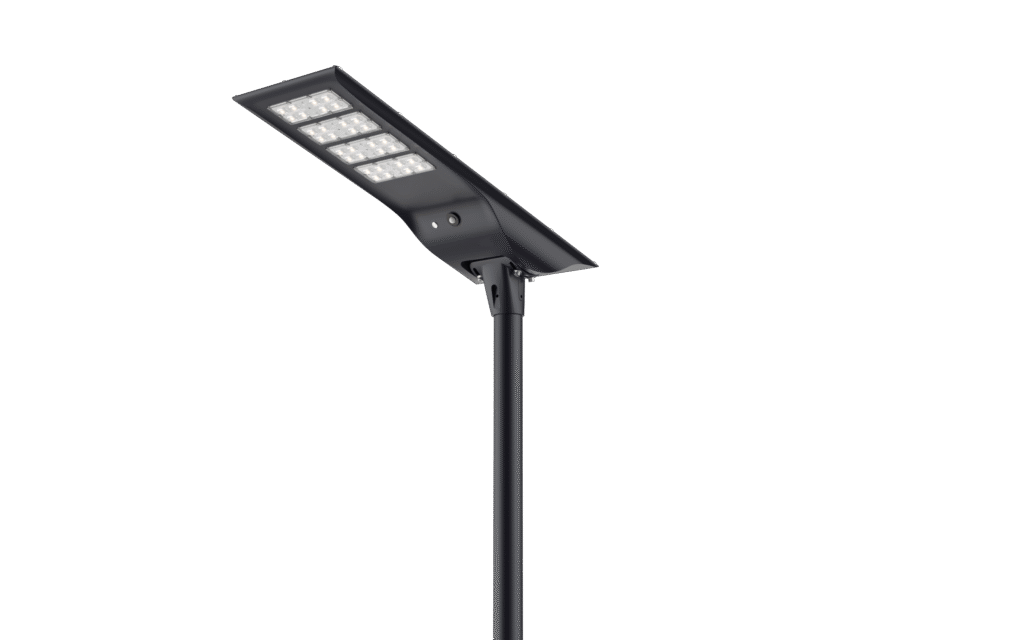

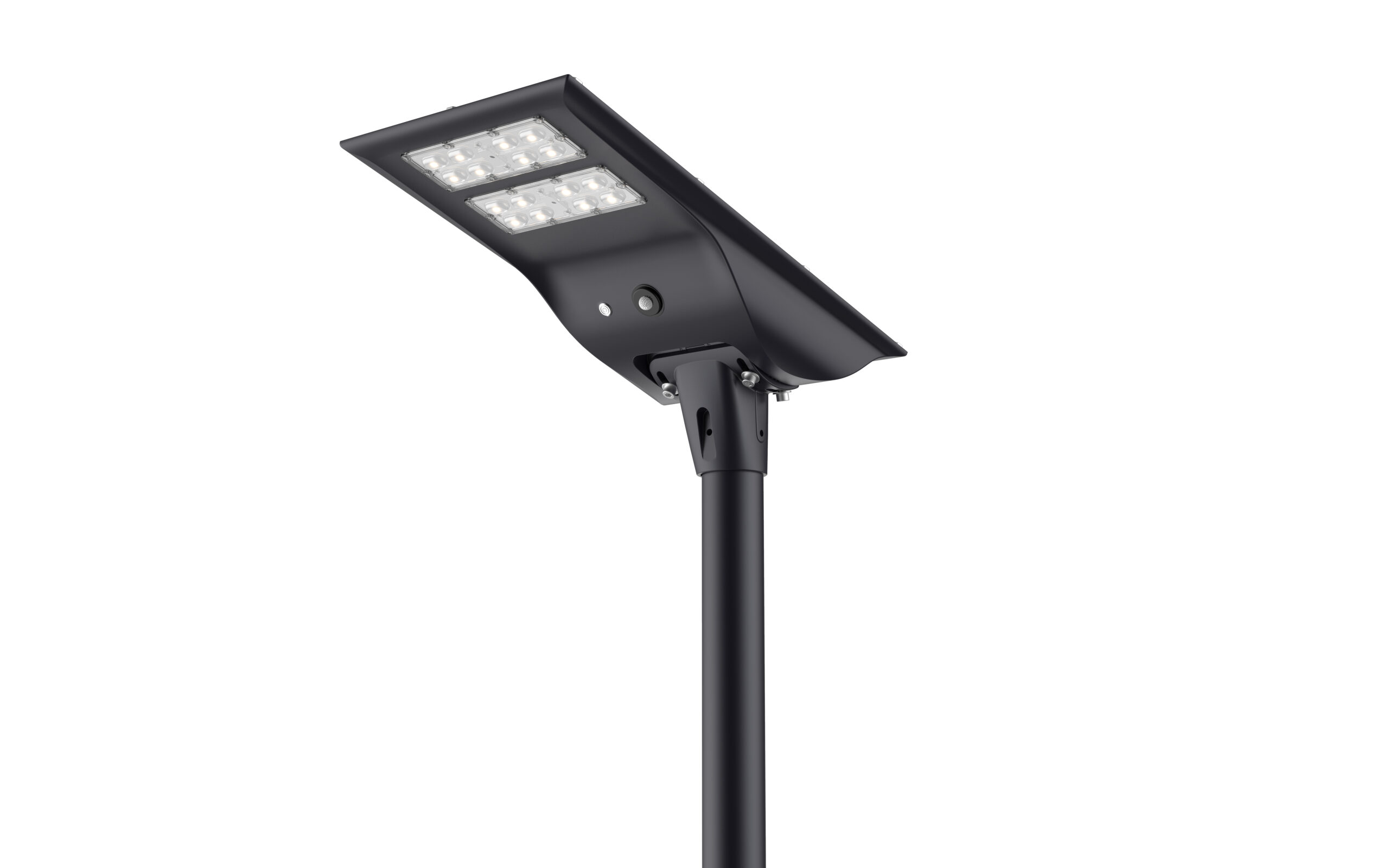

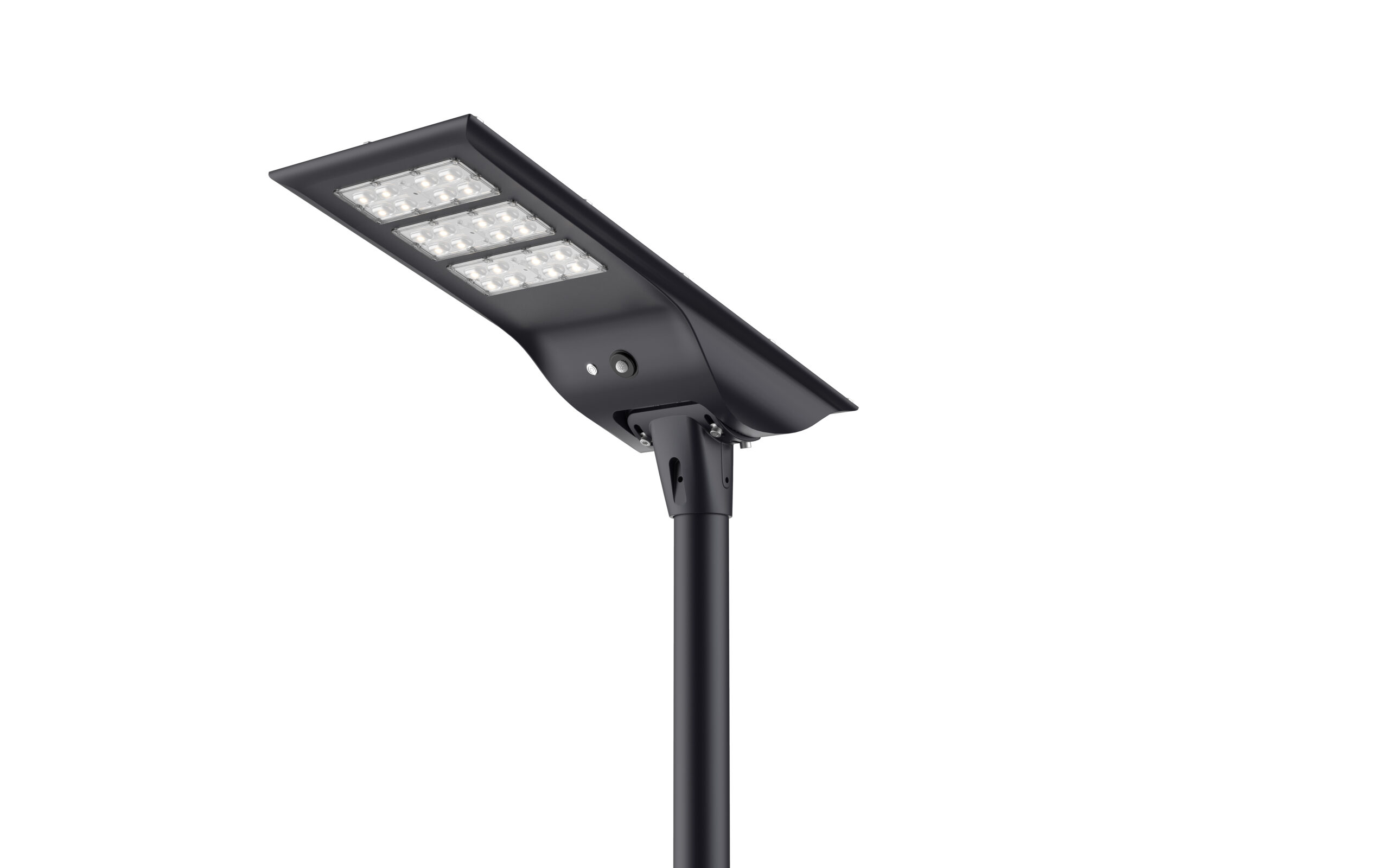

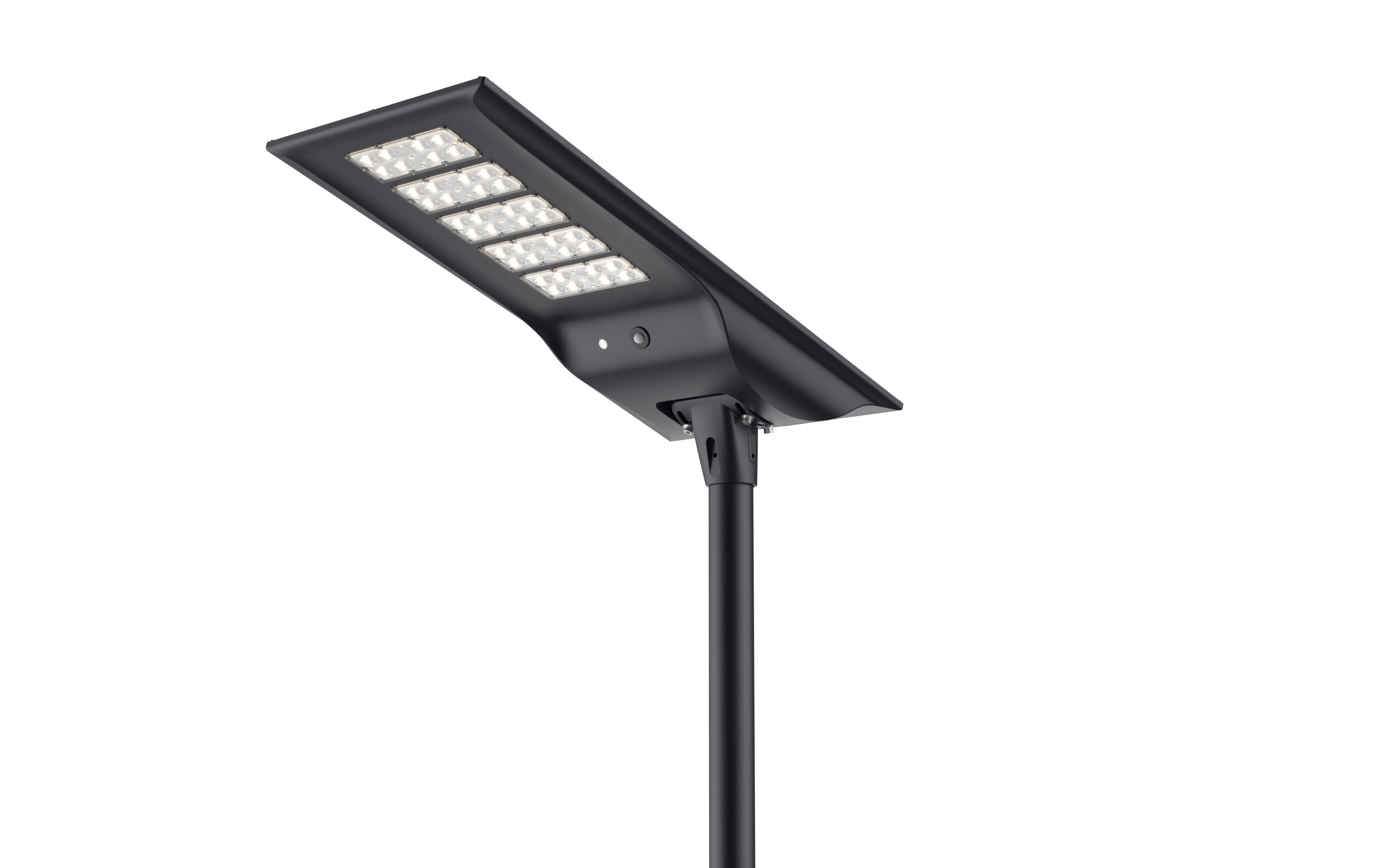

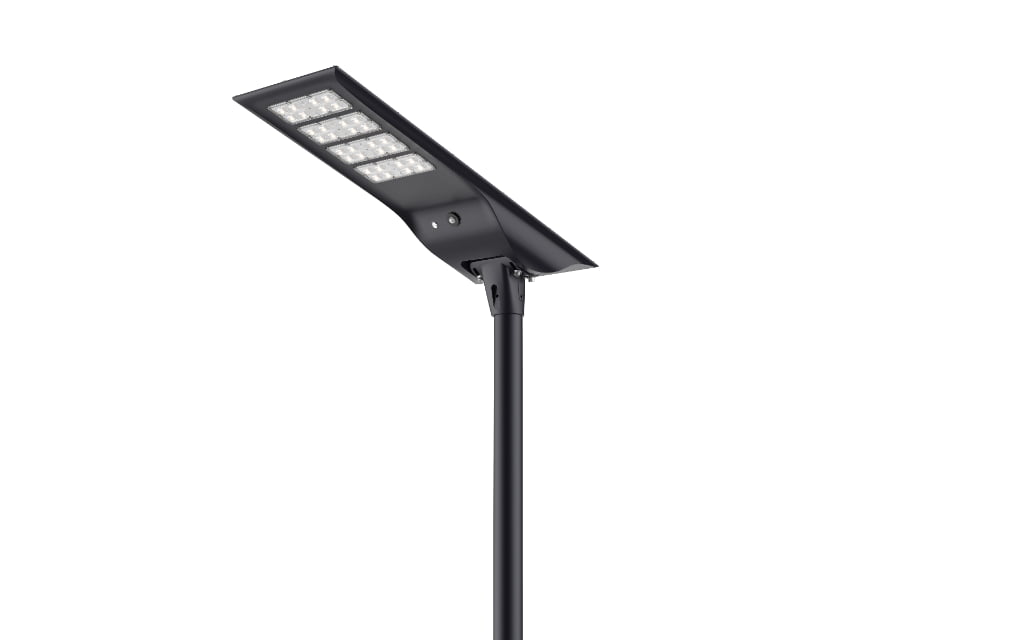

TF-TID-01

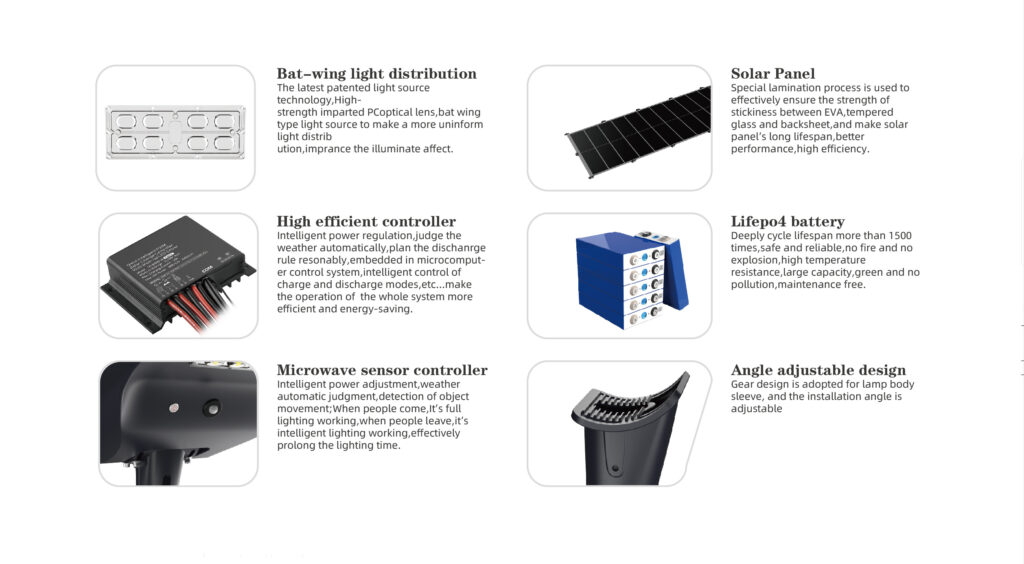

Bat-wing light distribution
The latest patented light source technology, High-strength impaired PcOptical lens, bat wing type light source to make a more uninform light distribution, imprance the illuminate affect.
High efficient controller
Intelligent power regulation, judge the weather automatically, plan the discharge rate resonably, embedded in microcomputer control system, intelligent control of charge and discharge modes, etc…make the operation of the whole system more efficient and energy-saving.

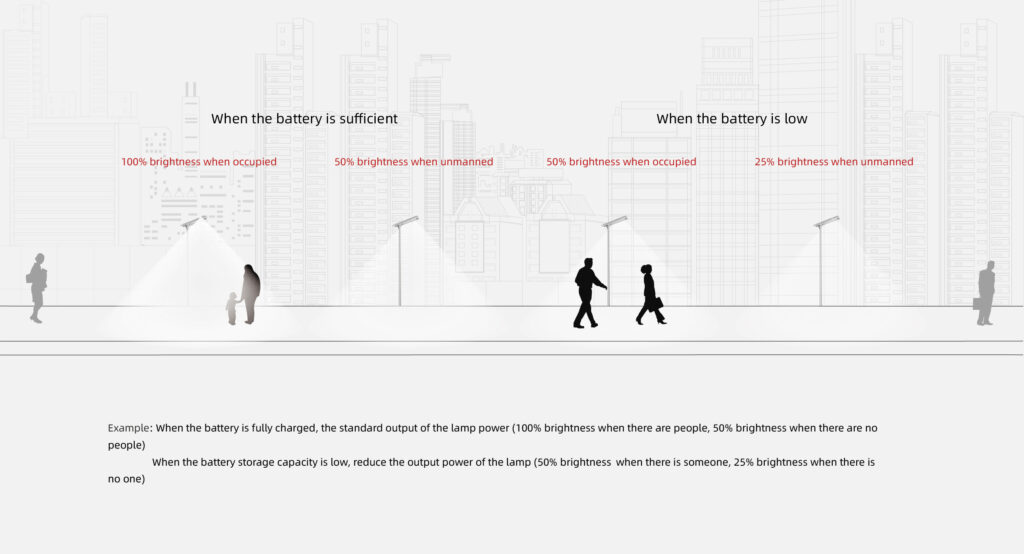

Microwave sensor controller
Intelligent power adjustment, weather automatic judgment, detection of object movement; When people come, it’s full lighting working, when people leave, it’s intelligent lighting working, effectively prolong the lighting time.

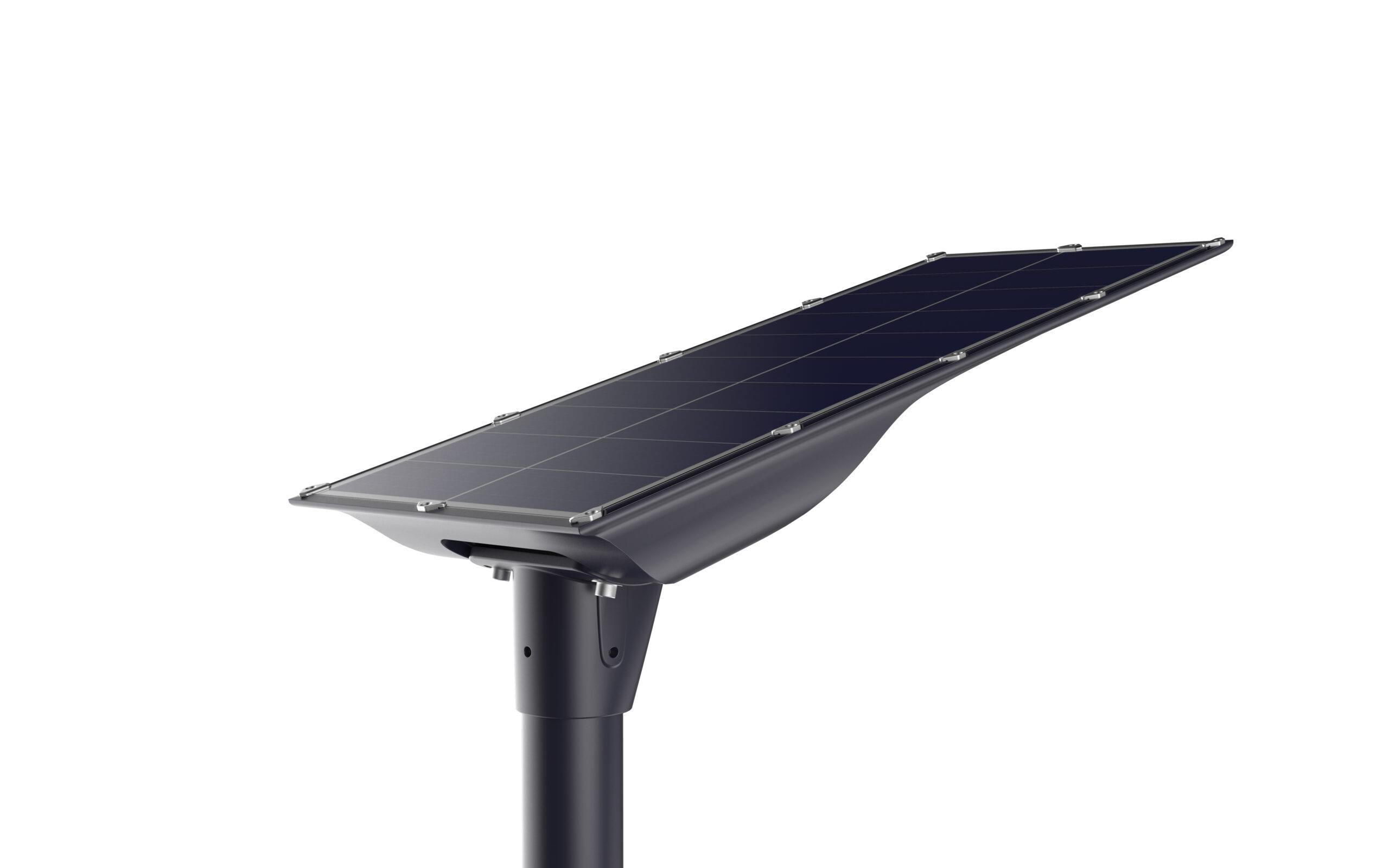

Solar Panel
Special lamination process is used to effectively ensure the strength of stickiness between EVA, tempered glass and backsheet and make solar panel’s long lifespan, better performance, high efficiency.
Lifepod battery
Deeply cycle lifespan more than 1500 times, safe and reliable, no fire and no explosion, high temperature resistance, large capacity, green and no pollution, maintenance free.

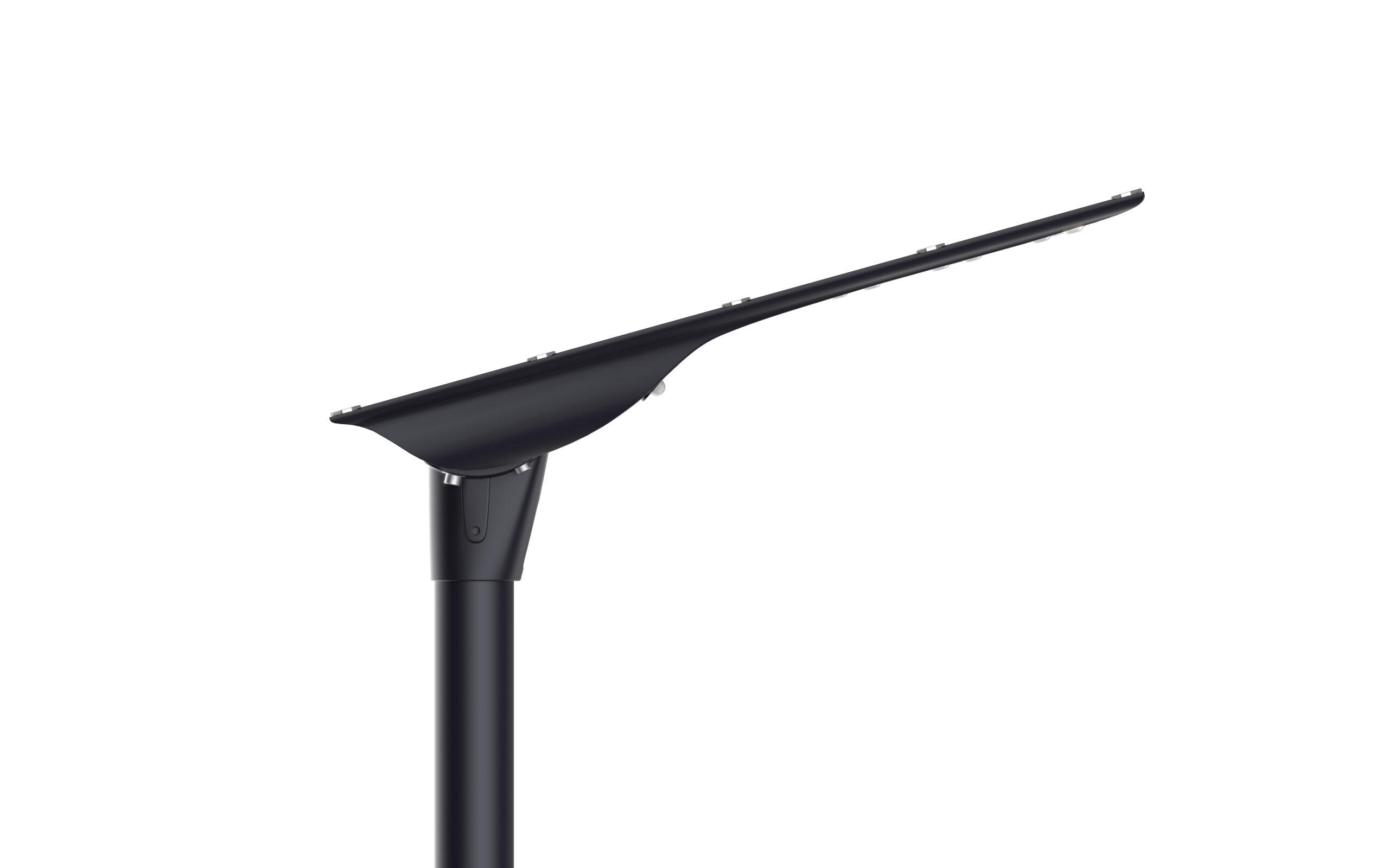

Angle adjustable design
Gear design is adopted for lamp body sleeve, and the installation angle is adjustable
Parameters
Product’s Serial Number | TF-TYD-01-1 | TF-TYD-01-2 | TF-TYD-01-3 | TF-TYD-01-4 |
Number of Modules | 2 PCS | 3 PCS | 4 PCS | 5PCS |
Solar Panel | High-Efficiency Mono-Crystalline Panel 40W | High-Efficiency Mono-Crystalline Panel 50W
|
High-Efficiency Mono-Crystalline Panel 60W
|
High-Efficiency Mono-Crystalline Panel 65W
|
Battery Storage | LifePO4 Lithium Battery 192WH/3.2V | LifePO4 Lithium Battery 288WH/3.2V | LifePO4 Lithium Battery 384WH/12.8V | LifePO4 Lithium Battery 576WH/12.8V |
Cyclable Usage of Battery |
Cyclable Usage of LifePO4 is 2000 Times |
|||
The Temperature of Charge and Discharge | The Temperature of the Charging Process is 0-45℃,
the Temperature of Discharging Process is -20-70℃ |
|||
Rated Power | 20W | 30W | 40W | 50W |
Color Temperature | 3000K – 6500K | |||
Effectiveness of Illuminance | 130-180LM/W | |||
Color Rendering Index | □ RA≥70 □ Ra≥80 | |||
Operating Condition | -10℃-+50℃,
10%~90%RH |
|||
Recommended Height for Installation | 3-6m | 3-6m | 6-8m | 6-8m |
IP Level | IP 67 |
Parameters
Product’s Serial Number | TF-TYD-01-1 | TF-TYD-01-2 | TF-TYD-01-3 | TF-TYD-01-4 |
Number of Modules | 2 PCS | 3 PCS | 4 PCS | 5PCS |
Solar Panel | High-Efficiency Mono-Crystalline Panel 40W | High-Efficiency Mono-Crystalline Panel 50W
|
High-Efficiency Mono-Crystalline Panel 60W
|
High-Efficiency Mono-Crystalline Panel 65W
|
Battery Storage | LifePO4 Lithium Battery 192WH/3.2V | LifePO4 Lithium Battery 288WH/3.2V | LifePO4 Lithium Battery 384WH/12.8V | LifePO4 Lithium Battery 576WH/12.8V |
Cyclable Usage of Battery |
Cyclable Usage of LifePO4 is 2000 Times |
|||
The Temperature of Charge and Discharge | The Temperature of the Charging Process is 0-45℃,
the Temperature of Discharging Process is -20-70℃ |
|||
Rated Power | 20W | 30W | 40W | 50W |
Color Temperature | 3000K – 6500K | |||
Effectiveness of Illuminance | 130-180LM/W | |||
Color Rendering Index | □ RA≥70 □ Ra≥80 | |||
Operating Condition | -10℃-+50℃,
10%~90%RH |
|||
Recommended Height for Installation | 3-6m | 3-6m | 6-8m | 6-8m |
IP Level | IP 67 |
Parameters
Product’s Serial Number | TF-TYD-01-1 | TF-TYD-01-2 | TF-TYD-01-3 | TF-TYD-01-4 |
Number of Modules | 2 PCS | 3 PCS | 4 PCS | 5PCS |
Solar Panel | High-Efficiency Mono-Crystalline Panel 40W | High-Efficiency Mono-Crystalline Panel 50W | High-Efficiency Mono-Crystalline Panel 60W | High-Efficiency Mono-Crystalline Panel 65W |
Battery Storage | LifePO4 Lithium Battery 192WH/3.2V | LifePO4 Lithium Battery 288WH/3.2V | LifePO4 Lithium Battery 384WH/12.8V | LifePO4 Lithium Battery 576WH/12.8V |
Cyclable Usage of Battery | Cyclable Usage of LifePO4 is 2000 Times | |||
The Temperature of Charge and Discharge | The Temperature of the Charging Process is 0-45℃, the Temperature of Discharging Process is -20-70℃ | |||
Rated Power | 20W | 30W | 40W | 50W |
Color Temperature | 3000K - 6500K | |||
Effectiveness of Illuminance | 130-180LM/W | |||
Color Rendering Index | □ RA≥70 □ Ra≥80 | |||
Operating Condition | -10℃-+50℃, 10%~90%RH | |||
Recommended Height for Installation | 3-6m | 3-6m | 6-8m | 6-8m |
IP Level | IP 67 |
Parameters
Product’s Serial Number | TF-TYD-01-1 | TF-TYD-01-2 | TF-TYD-01-3 | TF-TYD-01-4 |
Number of Modules | 2 PCS | 3 PCS | 4 PCS | 5PCS |
Solar Panel | High-Efficiency Mono-Crystalline Panel 40W | High-Efficiency Mono-Crystalline Panel 50W
|
High-Efficiency Mono-Crystalline Panel 60W
|
High-Efficiency Mono-Crystalline Panel 65W
|
Battery Storage | LifePO4 Lithium Battery 192WH/3.2V | LifePO4 Lithium Battery 288WH/3.2V | LifePO4 Lithium Battery 384WH/12.8V | LifePO4 Lithium Battery 576WH/12.8V |
Cyclable Usage of Battery |
Cyclable Usage of LifePO4 is 2000 Times |
|||
The Temperature of Charge and Discharge | The Temperature of the Charging Process is 0-45℃,
the Temperature of Discharging Process is -20-70℃ |
|||
Rated Power | 20W | 30W | 40W | 50W |
Color Temperature | 3000K – 6500K | |||
Effectiveness of Illuminance | 130-180LM/W | |||
Color Rendering Index | □ RA≥70 □ Ra≥80 | |||
Operating Condition | -10℃-+50℃,
10%~90%RH |
|||
Recommended Height for Installation | 3-6m | 3-6m | 6-8m | 6-8m |
IP Level | IP 67 |

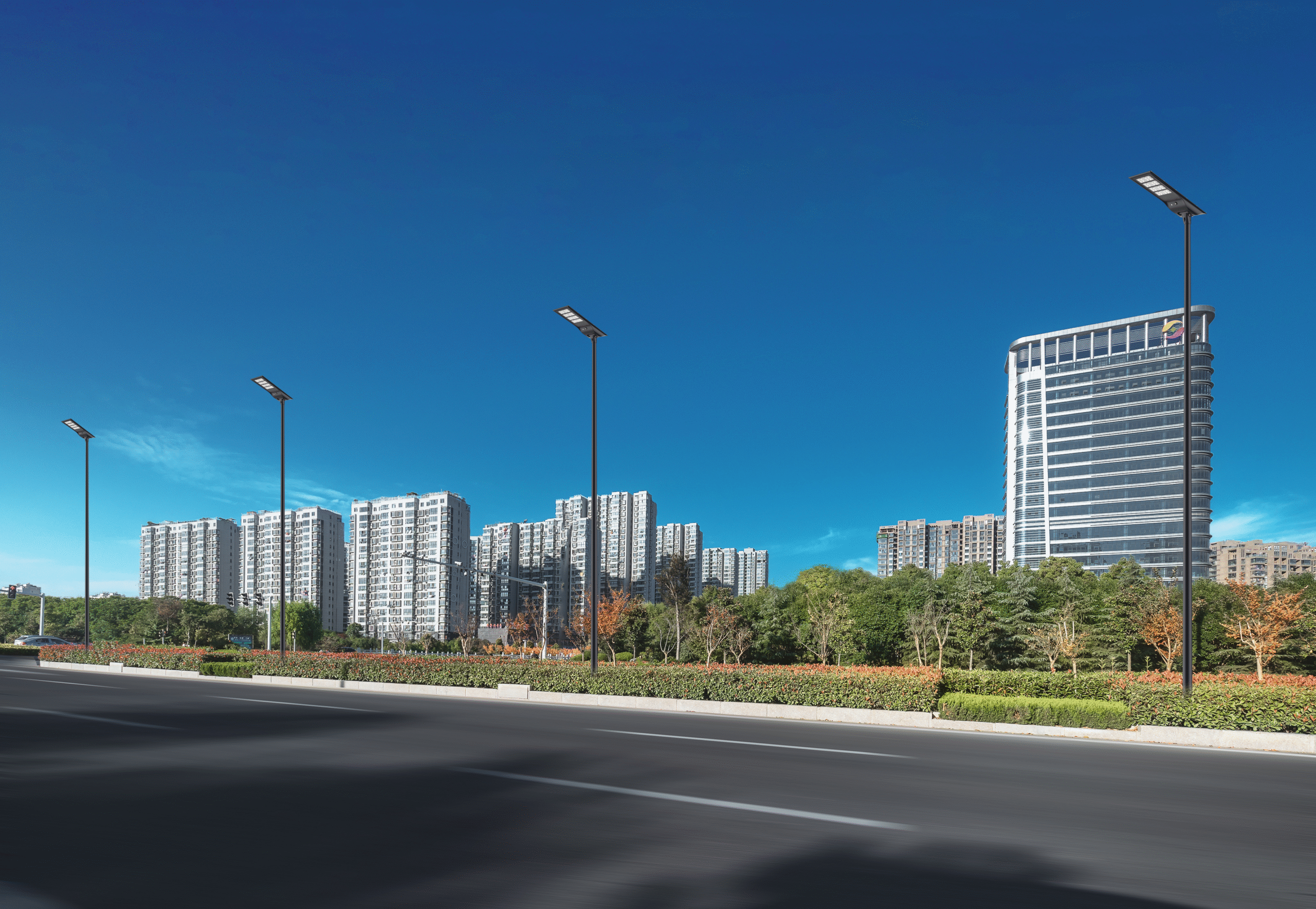

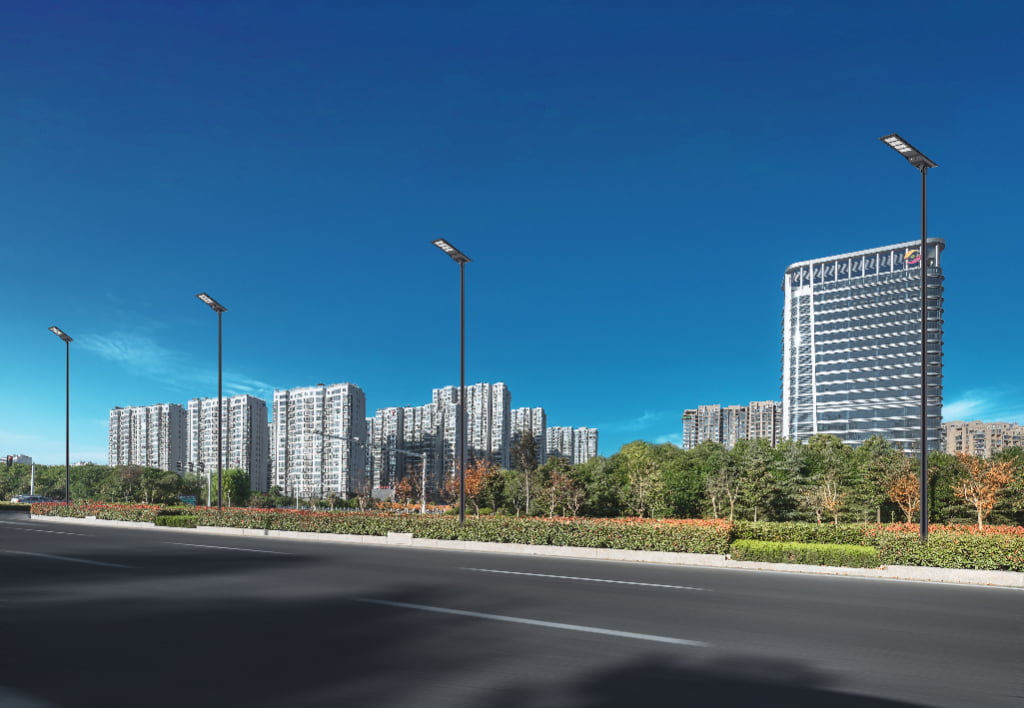

Application Scenarios

Parameters
Product’s Serial Number | TF-TYD-01-1 | TF-TYD-01-2 | TF-TYD-01-3 | TF-TYD-01-4 |
Number of Modules | 2 PCS | 3 PCS | 4 PCS | 5PCS |
Solar Panel | High-Efficiency Mono-Crystalline Panel 40W | High-Efficiency Mono-Crystalline Panel 50W
|
High-Efficiency Mono-Crystalline Panel 60W
|
High-Efficiency Mono-Crystalline Panel 65W
|
Battery Storage | LifePO4 Lithium Battery 192WH/3.2V | LifePO4 Lithium Battery 288WH/3.2V | LifePO4 Lithium Battery 384WH/12.8V | LifePO4 Lithium Battery 576WH/12.8V |
Cyclable Usage of Battery |
Cyclable Usage of LifePO4 is 2000 Times |
|||
The Temperature of Charge and Discharge | The Temperature of the Charging Process is 0-45℃,
the Temperature of Discharging Process is -20-70℃ |
|||
Rated Power | 20W | 30W | 40W | 50W |
Color Temperature | 3000K – 6500K | |||
Effectiveness of Illuminance | 130-180LM/W | |||
Color Rendering Index | □ RA≥70 □ Ra≥80 | |||
Operating Condition | -10℃-+50℃,
10%~90%RH |
|||
Recommended Height for Installation | 3-6m | 3-6m | 6-8m | 6-8m |
IP Level | IP 67 |
